Seller Needs:
$210,000|
5828
|
2

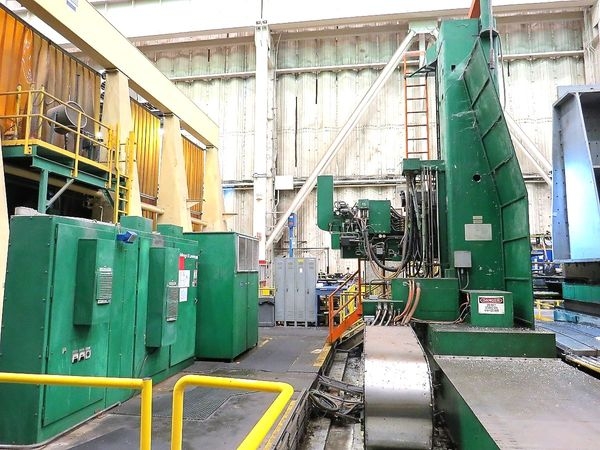

Pre-owned GIDDINGS & LEWIS G60 UF 1999 Boring Mill. This Boring Mill has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This GIDDINGS & LEWIS Boring Mill is avai...Read More
Seller Needs:
Payment:
Specs:
SPINDLE DIAMETER - 6" (152MM).
SPINDLE TAPER - #50 (SHORT SHANK)
ANSI B5.50 WITH COLLET TYPE DRAWBAR.
SPINDLE SPEEDS (INFINITELY VARIABLE), 11-3000 RPM.
SPINDLE TRAVEL (Z AXIS), 60" (1524MM)
UNDER-ARM TRAVEL (W1AXIS), 60" (1524MM).
HEADSTOCK TRAVEL (Y AXIS), 127" (3225MM)
HEADSTOCK TRAVEL (Y AXIS) ABOVE TOP OF ROTARY TABLE - 9 FEET).
COLUMN TRAVEL (X AXIS), 168" (4267MM)
NEW "G" SERIES UNDERARM HIGH SPEED HEADSTOCK
ROTARY TABLE CAPACITY: 150,000 LBS
ESTIMATED WEIGHT: 79,400 LBS
SPINDLE TAPER - #50 (SHORT SHANK)
ANSI B5.50 WITH COLLET TYPE DRAWBAR.
SPINDLE SPEEDS (INFINITELY VARIABLE), 11-3000 RPM.
SPINDLE TRAVEL (Z AXIS), 60" (1524MM)
UNDER-ARM TRAVEL (W1AXIS), 60" (1524MM).
HEADSTOCK TRAVEL (Y AXIS), 127" (3225MM)
HEADSTOCK TRAVEL (Y AXIS) ABOVE TOP OF ROTARY TABLE - 9 FEET).
COLUMN TRAVEL (X AXIS), 168" (4267MM)
NEW "G" SERIES UNDERARM HIGH SPEED HEADSTOCK
ROTARY TABLE CAPACITY: 150,000 LBS
ESTIMATED WEIGHT: 79,400 LBS
Options:
Coolant Thru Spindle
360 Deg. Indexing Table
Hi-Tech Operator Station 233 MHz Pentium II Processor
32 Speed CD Drive
14" VGA Monitor
360 Deg. Indexing Table
Hi-Tech Operator Station 233 MHz Pentium II Processor
32 Speed CD Drive
14" VGA Monitor
Seller:
GuyJ338
Location:
VA
