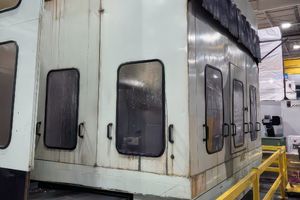

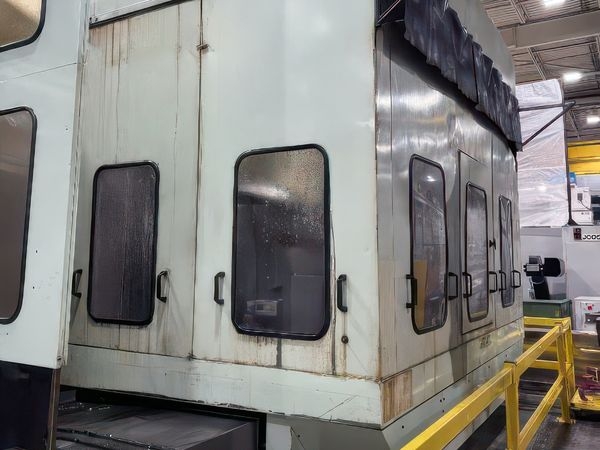

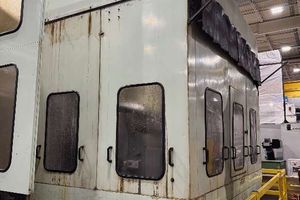

2003 KURAKI KBT13EA

ID:14984
Brand:KURAKI
Model: KBT13EA
Year:2003
Category:Boring Mill
Location:Wisconsin

Located In Wisconsin

SHIPPING COST :

KURAKI KBT13EA AI Chat

Loading ...

Machine Overview

Specs:

Spindle

Spindle diameter: 130 mm (5.1 in)

Spindle taper: BT50 / #50

Max spindle speed: 4000 RPM

Spindle motor: 45 kW (60 HP) geared head

Axis Travels

X-axis (table travel): 3000 mm (118 in)

Y-axis (head vertical): 2000 mm (78.7 in)

Z-axis (column cross): 1300 mm (51.2 in)

W-axis (spindle extension): 650 mm (25.6 in)

Table

Table size: 1800 × 2200 mm (70.9 × 86.6 in)

Max table load: about 15,000 kg (33,000 lb)

Table indexing: 0.001° (B-axis rotary table)

Tool Changer (typical)

Tool capacity: 40 tools (some machines up to 150 options)

Max tool weight: ~30 kg (66 lb)

Max tool length: ~600 mm (approx)

General

CNC control: FANUC or CELOS / FANUC

Machine weight: ~35,000 kg (77,000 lb)

Floor space: approx. 7.7 × 8.7 m

Common Options

Through-spindle coolant (around 5 MPa ? 725 psi)

Chip conveyor

glass scales on axes

spindle extension options

full enclosure

? Quick comparison:

Kuraki KBT-13E.A = 130 mm spindle class boring mill

Similar class to Mitsubishi MHT-13 series machines.
CAT50
Spindle 5.1 inch
33,000 lbs max table weight

Options:

Coolant Thru Spindle

Description:

Pre-owned KURAKI KBT13EA 2003 Boring Mill. This Boring Mill has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Wisconsin. This KURAKI Boring Mill is available for a limited time. Get a quote today on this KBT13EA before it's gone.
