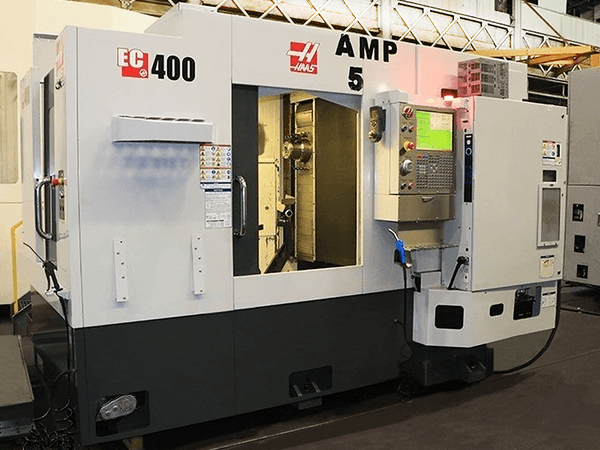

Presenting a fastidiously maintained 2013 HAAS EC400 Horizontal Machining Center. Currently deployed on a New Jersey floor, this machine brims with superior functionality, boasting capabilities that span across multifarious m...Read More
Notify Me:
Specs:
X Axis Travel: 22"
Y Axis Travel: 25"
Z Axis Travel: 22"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CT
Tool Changer: 70 ATC
Pallet Size: 15.75" x 15.75"
Dimensions: 93" x 178" x 131"
Weight: 15,200 LBS
Y Axis Travel: 25"
Z Axis Travel: 22"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CT
Tool Changer: 70 ATC
Pallet Size: 15.75" x 15.75"
Dimensions: 93" x 178" x 131"
Weight: 15,200 LBS
Options:
HAAS CNC Control
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
70 POSITION ATC
12,000 RPM SPINDLE
AUXILIARY COOLANT FILTER
CHIP AUGER
HIGH SPEED MACHINING
ETHERNET
EXPANDED MEMORY
RIGID TAPPING
SPINDLE LOAD MONITOR
ROTATION & SCALING
M19 SPINDLE ORIENT.
MACROS
QUICK CODE
INTUITIVE PROGRAMMING SYSTEM
ADVANCED TOOL MANAGEMENT
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
70 POSITION ATC
12,000 RPM SPINDLE
AUXILIARY COOLANT FILTER
CHIP AUGER
HIGH SPEED MACHINING
ETHERNET
EXPANDED MEMORY
RIGID TAPPING
SPINDLE LOAD MONITOR
ROTATION & SCALING
M19 SPINDLE ORIENT.
MACROS
QUICK CODE
INTUITIVE PROGRAMMING SYSTEM
ADVANCED TOOL MANAGEMENT
