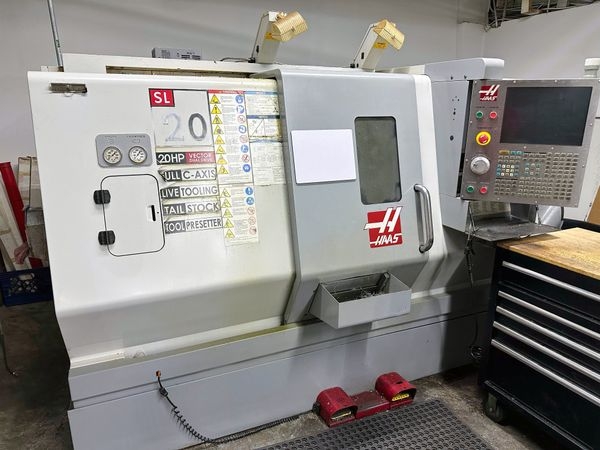

2009 HAAS SL20TM CNC Lathe with live tooling with a distinctly robust, HAAS-branded CNC Control system, this machine has proven its merit in many workspaces over the past decade. However, its age does not inhibit it...Read More
Rigging:
Free
Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 8.45"
Z Axis Travel: 20"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 10.3"
Max Turning Length: 24"
Max Swing: 23"
Weight: 9,000 LBS
Chuck Size: 8"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 8.45"
Z Axis Travel: 20"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 10.3"
Max Turning Length: 24"
Max Swing: 23"
Weight: 9,000 LBS
Options:
HAAS CNC Control
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
