Seller Needs:
$27,500|
1173
|
2

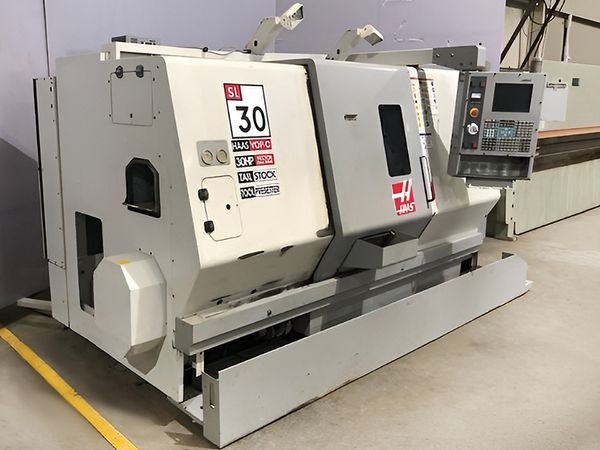

For sale is a 2004 HAAS SL30T CNC Lathe that comes with the HAAS CNC Control. This machine is the perfect piece of equipment for a plethora of tasks. Its prestigious engineering and use throughout the years have made it a not...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-6
Max Rating: 30hp
Max Speed: 3400 rpm
Max Torque: 300 ft-lbf
Max Torque w/opt Gearbox
Spindle Bore: 3.5"
Weight: 14,300 LBS
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-6
Max Rating: 30hp
Max Speed: 3400 rpm
Max Torque: 300 ft-lbf
Max Torque w/opt Gearbox
Spindle Bore: 3.5"
Weight: 14,300 LBS
Options:
HAAS CNC Control
Tool Presetter
Tailstock
Parts Catcher
Tool Presetter
Tailstock
Parts Catcher
Seller:
ArnoM736
Location:
TX
