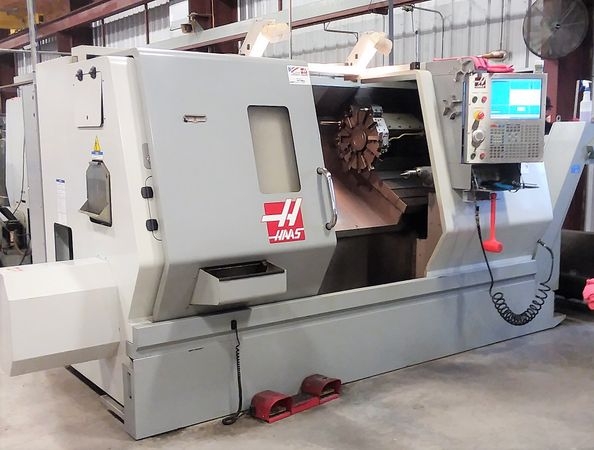

Used HAAS SL30T CNC Lathe
Pre-owned HAAS SL30T 2008 CNC Lathe for only $29,900. This CNC Lathe has average cutting time and is equipped with a Haas CNC Control control. This CNC Machine is currently located in TX. This HAAS CNC Lathe is the only one in stock and available for a limited time. Get a quote today on this SL30T before it's gone.
Specifications:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X 4100 lbf 18238 N
Max Thrust Z 5100 lbf 22686 N
SPINDLE S.A.E METRIC
Spindle Nose A2-6 A2-6
Max Rating 30.0 hp 22.4 kW
Max Speed 3400 rpm 3400 rpm
Max Torque 300 ft-lbf @ 500 rpm 407 Nm @ 500 rpm
Max Torque w/opt Gearbox 1000 ft-lbf @ 150 rpm 1356 Nm @ 150 rpm
Spindle Bore 3.50 in 88.9 mm
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X 4100 lbf 18238 N
Max Thrust Z 5100 lbf 22686 N
SPINDLE S.A.E METRIC
Spindle Nose A2-6 A2-6
Max Rating 30.0 hp 22.4 kW
Max Speed 3400 rpm 3400 rpm
Max Torque 300 ft-lbf @ 500 rpm 407 Nm @ 500 rpm
Max Torque w/opt Gearbox 1000 ft-lbf @ 150 rpm 1356 Nm @ 150 rpm
Spindle Bore 3.50 in 88.9 mm
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Equipped With:
Haas CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
High Intensity Lighting
2 Speed Gear Box
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
High Intensity Lighting
2 Speed Gear Box
Seller:
Ronnie (Machine Shop in USA)
