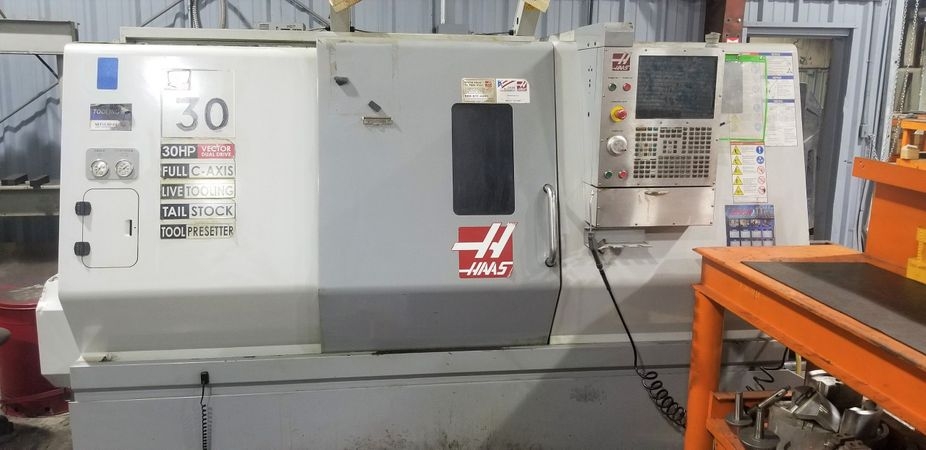

HAAS SL30T CNC Lathe

Used HAAS SL30T CNC Lathe

Pre-owned HAAS SL30T 2009 CNC Lathe for only $44,900. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in TX. This HAAS CNC Lathe is the only one in stock and available for a limited time. Get a quote today on this SL30T before it's gone.

Specifications:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X 4100 lbf 18238 N
Max Thrust Z 5100 lbf 22686 N
SPINDLE S.A.E METRIC
Spindle Nose A2-6 A2-6
Max Rating 30.0 hp 22.4 kW
Max Speed 3400 rpm 3400 rpm
Max Torque 300 ft-lbf @ 500 rpm
Spindle Bore 3.5"
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Equipped With:
HAAS CNC Control
Tool Presetter
Tailstock
Live Tooling
Seller:
Quinn (Machine Shop in USA)
q-a icon
Answers
any options?
tailstock, 30 hp full c-axis live tooling tool presetter
any tooling included?
2 live tool holders
what kind of parts and material are you cutting?
4140, 4330 v-mod, aluminum. some copper, no graphite and no cast iron, a little copper
how tight of tolerance it can hold?
yes
what did it cost when it was new?
traded in an okuma and tl2 for this
when do you need it out by?
none
why are you thinking of selling it?
no longer wants to do machining due to oil market crashing.
what are the hours?
Feed Cutting 236 (reset)
