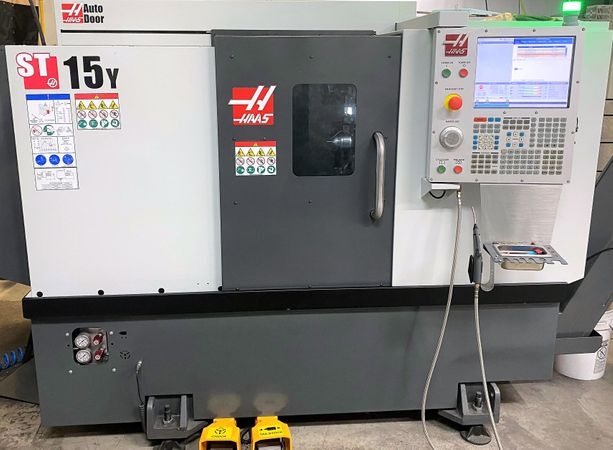

Pre-owned HAAS ST15Y 2019 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. Get a quote today on this ST15Y before it's gone.
Notify Me:
Specs:
Bar Capacity: 2.5"
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.88"
Z Axis Travel: 14"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 16.5"
Max Turning Length: 14"
Max Swing: 25.25"
MAIN SPINDLE C AXIS
Max Rating 5 hp
Live Tooling 4,000 RPM
Max Speed 60 rpm
Positioning (±) 0.02°
Brake Clamp Force 1000 lbf
Brake Diameter 14.4"
Brake Holding Torque 140 ft-lbf
Dimensions: 126" x 83" x 71"
Weight: 9,000 LBS
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.88"
Z Axis Travel: 14"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 16.5"
Max Turning Length: 14"
Max Swing: 25.25"
MAIN SPINDLE C AXIS
Max Rating 5 hp
Live Tooling 4,000 RPM
Max Speed 60 rpm
Positioning (±) 0.02°
Brake Clamp Force 1000 lbf
Brake Diameter 14.4"
Brake Holding Torque 140 ft-lbf
Dimensions: 126" x 83" x 71"
Weight: 9,000 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Y Axis
5 Axis
Visual Part Programming
Collet Chuck In video is NOT included
$97,375 in 2019 (Can Ship ASAP)
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Y Axis
5 Axis
Visual Part Programming
Collet Chuck In video is NOT included
$97,375 in 2019 (Can Ship ASAP)
