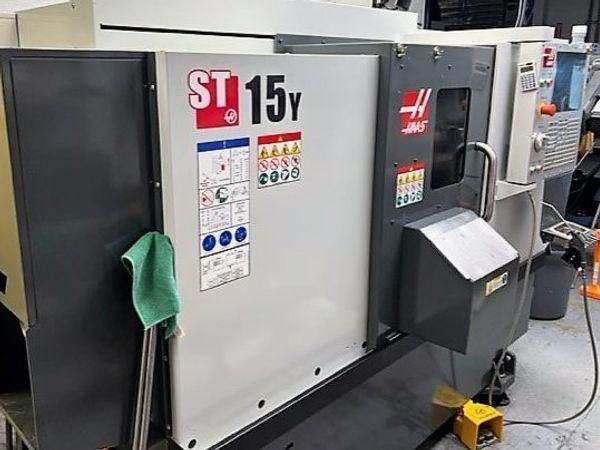

Reserve Met: HAAS ST15Y CNC Lathe

MAIN SPINDLE:
Bar Capacity: 2.5"

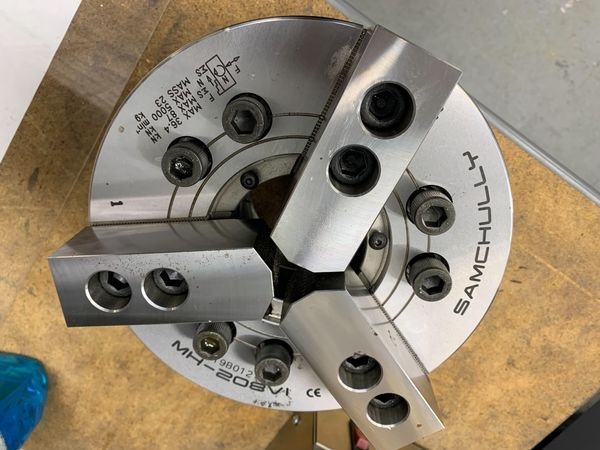

Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
Spindle Nose: A2-6
Max Torque 150 lbs

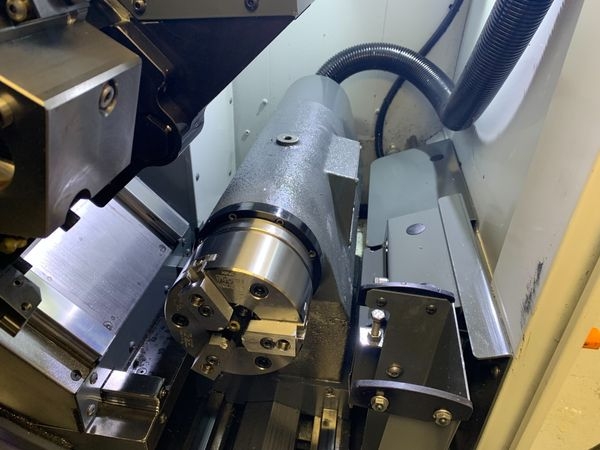

SUB SPINDLE:
Chuck Size: 5.3"
Spindle Speed: 6,000 RPM
Spindle Nose: A2-5
Built in Parts Ejector

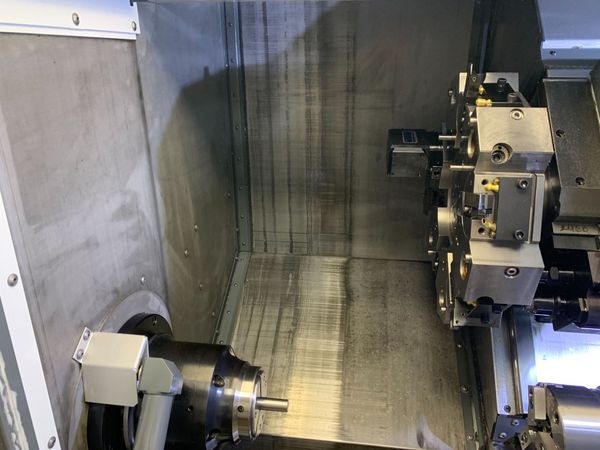

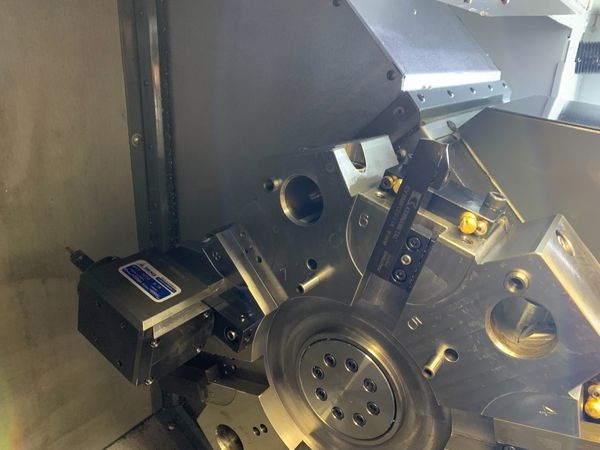

LIVE TOOLING:
Y Axis Travel: ± 2"
Turret Tools: 12 Station
Live Tooling: C Axis
Live Tooling: 6,000 RPM upgraded (4k standard)

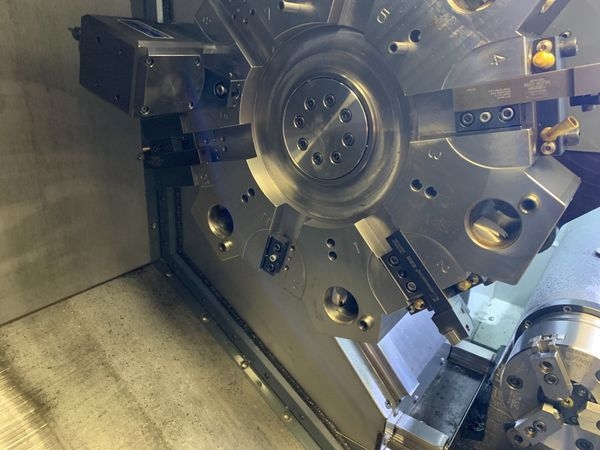

Hybrid VDI Turret

TRAVLES:
X Axis Travel: 7.88"
Z Axis Travel: 14"
Y Axis Travel: ± 2"
Rapid Rate Z Axis: 1,200 IPM
Rapid Rate X Axis: 472 IPM
Rapid Rate Y Axis: 472 IPM
Max Turning Dia: 16.5"
Max Turning Length: 14"
Max Swing: 25.25"

DIMENSIONS:
Machine: 126" x 70" x 81"
Weight: 9,000 LBS

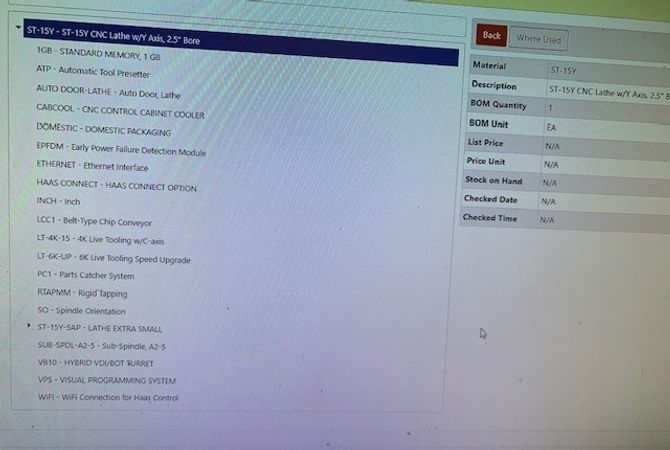

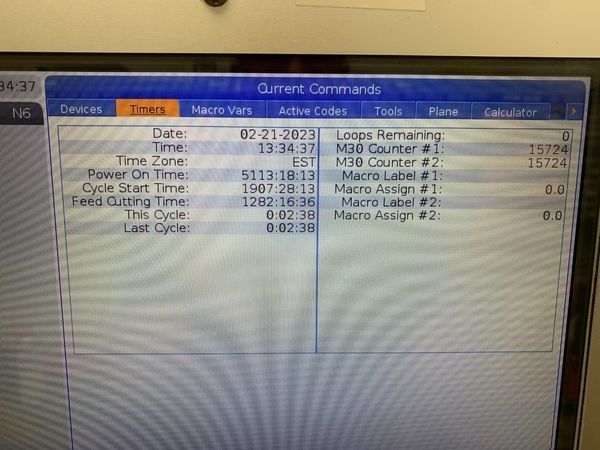

Haas Next Gen CNC Control

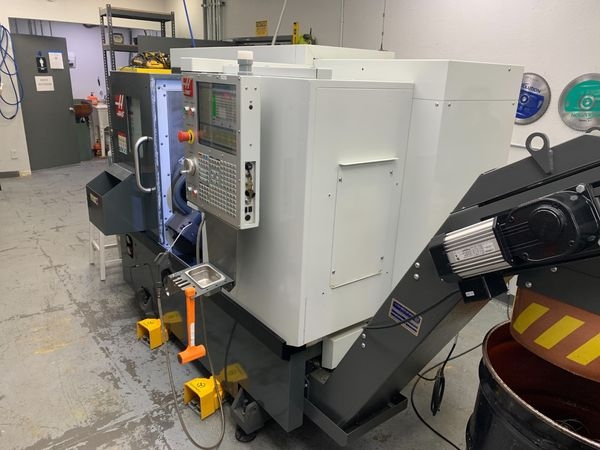

Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Auto Door Open/Close
Live Tooling 6,000 Upgraded Super Speed
Y Axis Milling
Rigid Tapping
Spindle Orientation
Visual Part Programing
Wifi Connection for Haas Control
CNC Control Cabinet Cooler
Early Power Failure Detection
New Cost $137,865
**Collet chuck is NOT included**
