Max Turning Length: 21"
Max Swing: 31.75"
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y-Axis Travel: +/- 2"
Spindle Speed: 5,000 RPM
Spindle Bar Capacity: 2"
Spindle Motor: 30 HP
Spindle Nose: A2-6

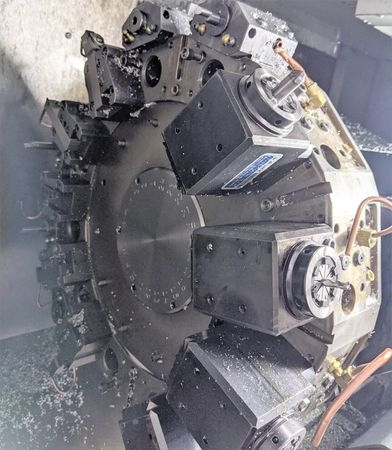

Turret Tools: 24 Station
Turret Type: Hybrid BOT/VDI
Dimensions: 156" L x 97" W x 74" H
Weight: 9,000 LBS
![[object Object]-ST20SSY-5922](https://cdn.cncmachines.com/2021/October/2013-HAAS-ST20SSY-1635379499701-thumbnail)
![[object Object]-ST20SSY-5922](https://cdn.cncmachines.com/2021/October/2013-HAAS-ST20SSY-1635379503186-thumbnail)
![[object Object]-ST20SSY-5922](https://cdn.cncmachines.com/2021/October/2013-HAAS-ST20SSY-1635379505997-thumbnail)
![[object Object]-ST20SSY-5922](https://cdn.cncmachines.com/2021/October/2013-HAAS-ST20SSY-1635379508358-thumbnail)
![[object Object]-ST20SSY-5922](https://cdn.cncmachines.com/2021/October/2013-HAAS-ST20SSY-1635379511708-thumbnail)
![[object Object]-ST20SSY-5922](https://cdn.cncmachines.com/2021/October/2013-HAAS-ST20SSY-1635379515018-thumbnail)
![[object Object]-ST20SSY-5922](https://cdn.cncmachines.com/2021/October/2013-HAAS-ST20SSY-1635379518187-thumbnail)
![[object Object]-ST20SSY-5922](https://cdn.cncmachines.com/2021/October/2013-HAAS-ST20SSY-1635379520511-thumbnail)
![[object Object]-ST20SSY-5922](https://cdn.cncmachines.com/2021/October/2013-HAAS-ST20SSY-1635379522610-thumbnail)

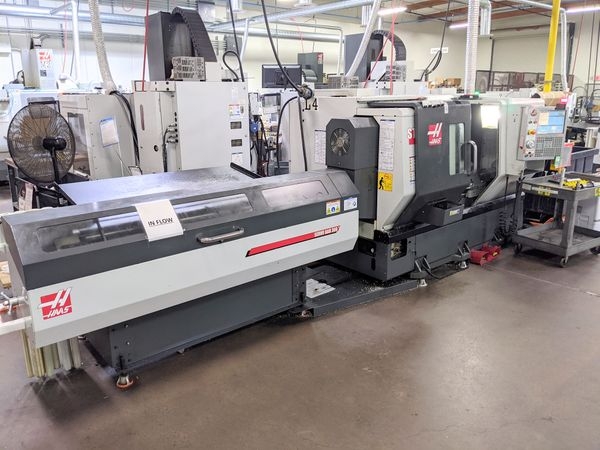

L4 - HAAS ST20SSY 2013 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. Get a quote today on this ST20SSY before it's gone.
Max Swing: 31.75"
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y-Axis Travel: +/- 2"
Spindle Speed: 5,000 RPM
Spindle Bar Capacity: 2"
Spindle Motor: 30 HP
Spindle Nose: A2-6
Turret Tools: 24 Station
Turret Type: Hybrid BOT/VDI
Dimensions: 156" L x 97" W x 74" H
Weight: 9,000 LBS
Tool Presetter

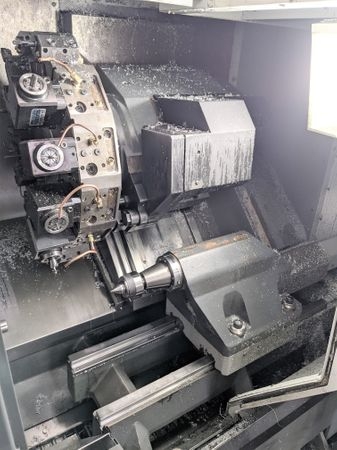

Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Y Axis
5 Axis
C-Axis
User-Definable Macros
Visual Parts Programming
Rigid Tapping
Haas Connect
Ethernet
WiFi
Spindle Orientation
1GB Memory
