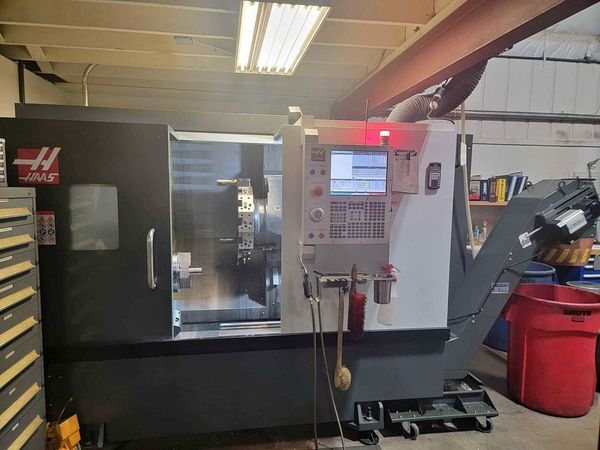

Pre-owned HAAS ST25 2021 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Haas Next Gen CNC Control control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limite...Read More
Notify Me:
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 21"
Max Swing: 31.75"
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Max Torque 300 ft-lbf
Spindle Bore 3.5"
Coolant Capacity 55 gal
Drive System Belt Drive
Weight: 10,000 LBS
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 21"
Max Swing: 31.75"
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Max Torque 300 ft-lbf
Spindle Bore 3.5"
Coolant Capacity 55 gal
Drive System Belt Drive
Weight: 10,000 LBS
Options:
Haas Next Gen CNC Control
Chip Conveyor
Tool Presetter
Chip Conveyor
Tool Presetter
