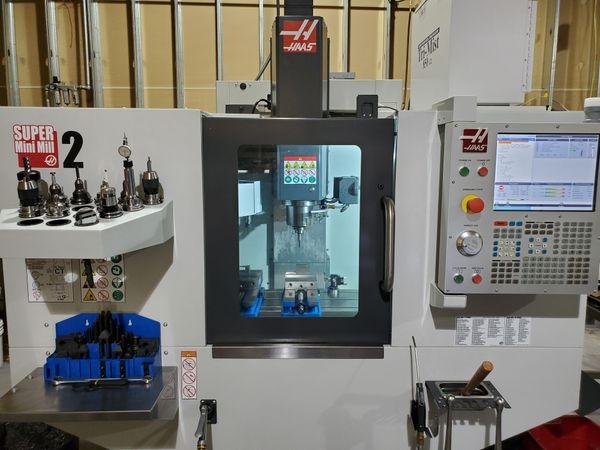

Pre-owned HAAS SUPER MINI MILL 2 2019 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Mac...Read More
Notify Me:
Rigging:
$1,230
Specs:
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 14"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Table Size: 40" x 14"
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Cutting 833 IPM
Max Thrust X 2000 lbf
Max Thrust Y 2000 lbf
Max Thrust Z 2000 lbf
Direct Drive Belt Drive
Spindle Nose to Table 4-18"
Max Tool Diameter (full) 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Coolant Capacity 40 gal
Dimensions: 91" x 88" x 100"
Weight: 5,100 LBS
Y Axis Travel: 16"
Z Axis Travel: 14"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Table Size: 40" x 14"
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Cutting 833 IPM
Max Thrust X 2000 lbf
Max Thrust Y 2000 lbf
Max Thrust Z 2000 lbf
Direct Drive Belt Drive
Spindle Nose to Table 4-18"
Max Tool Diameter (full) 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Coolant Capacity 40 gal
Dimensions: 91" x 88" x 100"
Weight: 5,100 LBS
Options:
Haas Next Gen CNC Control
Probe
Programmable Coolant
W.I.P.S system
Rigid Tapping
1 GB Memory
Macros
Rotation and Scaling
M19 Spindle Orient
VPS Editing
Media Display
Compensation Tables
Probe
Programmable Coolant
W.I.P.S system
Rigid Tapping
1 GB Memory
Macros
Rotation and Scaling
M19 Spindle Orient
VPS Editing
Media Display
Compensation Tables
