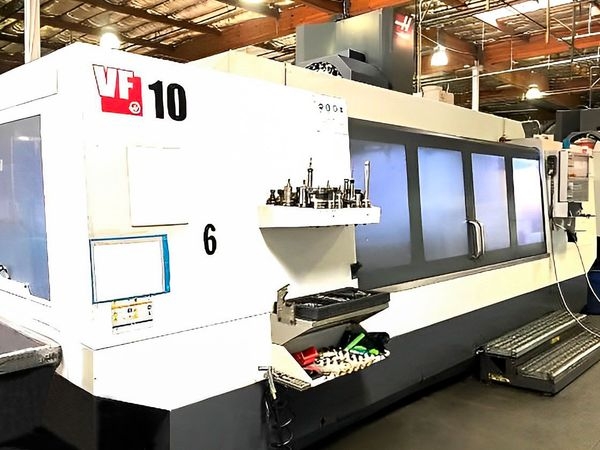

The 2016 HAAS VF10 Vertical Machining Center is a high-performing machine that provides steady results with aluminum materials. This used product is currently under power and available for inspection for interested buyers. T...Read More
Notify Me:
Specs:
X Axis Travel: 120"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Thrust X 3400 lbf
Max Thrust Y 3400 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 6"
Max Tool Length 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Table Size: 120" x 28"
Dimensions: 288" x 102" x 130"
Weight: 30,100 LBS
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Thrust X 3400 lbf
Max Thrust Y 3400 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 6"
Max Tool Length 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Table Size: 120" x 28"
Dimensions: 288" x 102" x 130"
Weight: 30,100 LBS
Options:
HAAS CNC Control
Coolant Thru Spindle
Programmable Coolant
Pre-wired for 4th
Chip Auger
Coolant Thru Spindle at 300 PSI
Rigid Tapping
64 GB Max Memory
Remote Jog Handle/USB
Compensation Tables/Custom Rotaries/Media Display
95 Gal Coolant Tank
Coolant Thru Spindle
Programmable Coolant
Pre-wired for 4th
Chip Auger
Coolant Thru Spindle at 300 PSI
Rigid Tapping
64 GB Max Memory
Remote Jog Handle/USB
Compensation Tables/Custom Rotaries/Media Display
95 Gal Coolant Tank
