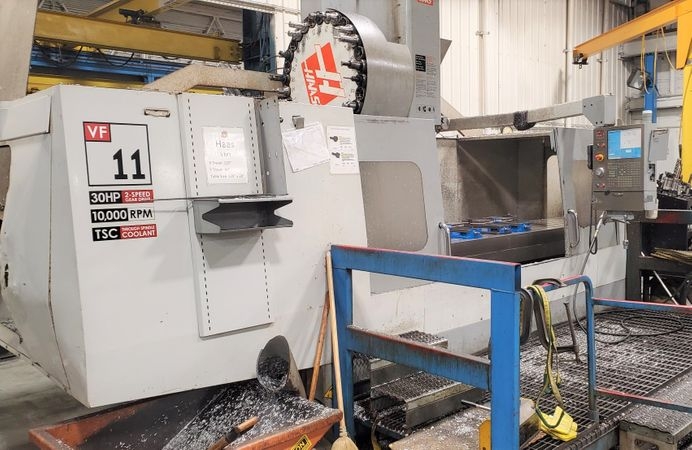

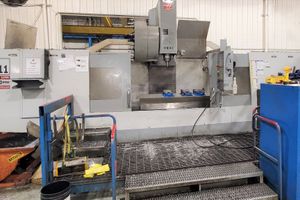

Pre-owned HAAS VF11-50 2007 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Pennsylvania. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF11-50 before it's gone.
Notify Me:
Specs:
X Axis Travel: 120"
Y Axis Travel: 40"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM

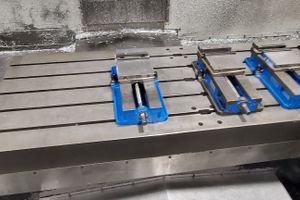

Table Size: 120" x 28"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 50 CT
Tool Changer: 30 ATC
Max Cutting 360 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Weight: 36,000 LBS
Y Axis Travel: 40"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 120" x 28"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 50 CT
Tool Changer: 30 ATC
Max Cutting 360 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Weight: 36,000 LBS
Options:

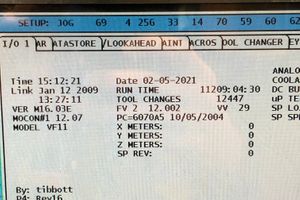

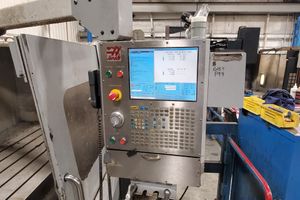

HAAS CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
Wireless Intuitive Probing System
Chip Auger
Rigid Tapping
High Performace 10,000 RPM Spindle
Window Air Blast
Spindle Orientation
Coordinate Rotation and Scaling
User Definable Macros
Remote Jog Handle
Ethernet Capable
Probe
Coolant Thru Spindle
Programmable Coolant
Wireless Intuitive Probing System
Chip Auger
Rigid Tapping
High Performace 10,000 RPM Spindle
Window Air Blast
Spindle Orientation
Coordinate Rotation and Scaling
User Definable Macros
Remote Jog Handle
Ethernet Capable
