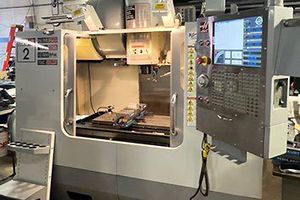

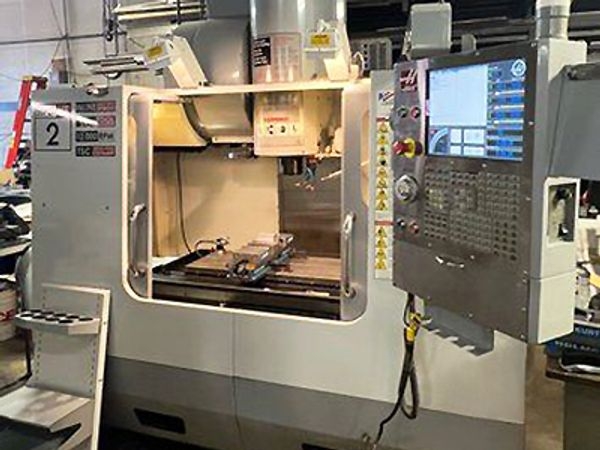

2007 HAAS VF2SS

ID:13609
Brand:HAAS
Model: VF2SS
Year:2007
Category:Vertical Machining Center
Location:USA

Located In USA

500-1000 Hours

Hello!

Machine Overview

Specs:

X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size:
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Spindle Nose to Table: 4" - 24"
Max Cutting: 833 ipm
Max Weight: 1500 lb
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Dimensions:
Weight: 7,800 LBS

Also Includes:
CAT 40 Tool Holders & Chucks
-- (5) Techniks SYIC-22235-N CAT 40 ER32 Collet Chucks
-- (4) RedLine CAT 40 ER32 Collet Chucks (RC4ER32270)
-- (7) RedLine CAT 40 End Mill Holders (.375"–1.25")

ER32 Collet Set
-- Complete ER32 collet set (approx. 50 pieces) covering full size range
-- Includes premium Kennametal collets in protective cases

Servo Time: 3,772 hours
Motion Time: 869 hours
Spindle Time: 1,227 hours

Options:

HAAS CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
Through-Spindle Coolant (TSC)
Renishaw OMP40-2 Spindle Probe
Renishaw Optical Receiver
Haas Wireless Tool Setter
Side-Mounted Tool Changer (SMTC) 24+1
Side-Mounted Chip Auger
Manual Pulse Generator (MPG) Handwheel
Additional Internal LED Work Lighting

Description:

Pre-owned HAAS VF2SS 2007 Vertical Machining Center. This Vertical Machining Center has 500-1000 cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF2SS before it's gone.
