Machine Overview

Specs:
X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Max Torque 90 ft-lbf
Max Cutting 500 ipm
Max Thrust X 2550 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s

Table Size: 54" x 24"
Weight: 15,000 LBS
Options:
HAAS CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
Haas Inline Direct-Drive Spindle
40 ATC Side Mount
Chip Auger
Description:

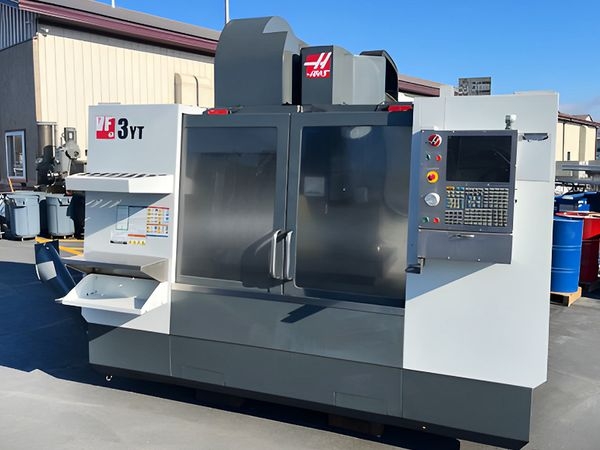

A prime opportunity to acquire a second hand, nonetheless capable 2011 HAAS VF3YT Vertical Machining center.  Outfitted with the renowned HAAS CNC Control, the machine delivers an impressive level of accuracy and precision that is second to none in the realm of vertical machining platforms.

This 2011 HAAS VF3YT is no ordinary vertical machining center. It comes equipped with an array of enhanced features and optional upgrades that maximizes its utility and makes it a versatile tool in any production setting. Noteworthy among its features is the Probe function, a valuable tool for part measurement and inspection. This feature enables the machine to achieve impeccable results through accurate dimensional control.

The machine also boasts a Coolant Thru Spindle provision. This means that the machine is designed to supply coolant directly through the spindle, consequently enhancing the tool's life and improving the overall machining process. Alongside this, the Programmable Coolant feature gives operators the control to adjust coolant delivery to meet the demands of different machining tasks. This facilitates a greater degree of flexibility and adaptability in tackling a wide spectrum of operations.

Furthermore, the 2011 HAAS VF3YT comes with an inbuilt HAAS Inline Direct-Drive Spindle. This feature eliminates belts and pulleys thereby minimizing potential sources of vibration during high-speed operations. This results in notably better surface finishes and improved part quality. A 40 ATC Side Mount is also included, providing a vast tooling carriage capacity for diverse machining processes.

Lastly, the included Chip Auger feature ensures optimal working conditions by automatically removing chips and other waste material from the work area. This not only improves operational safety but also contributes to the longevity of the machine as it minimizes potential wear and damage. The 2011 HAAS VF3YT Vertical Machining Center indeed presents a viable and affordable solution to a wide range of machining needs.
