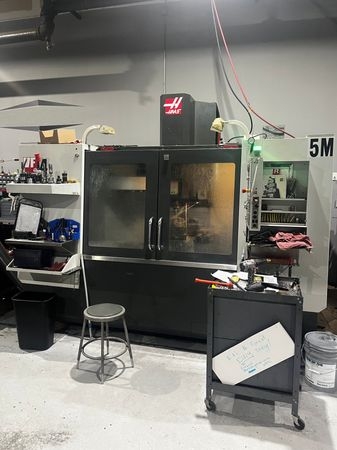

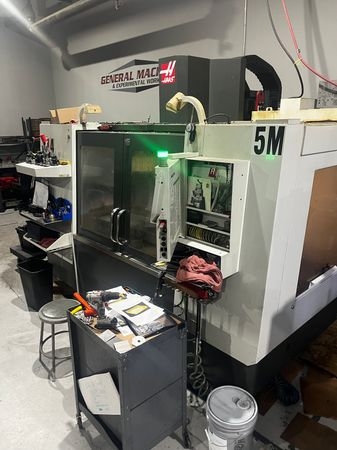

We are offering a pre-owned 2013 HAAS VF4 Vertical Machining Center, currently located in New Jersey, that has been a valuable asset for our machining needs. Due to a shift in our production strategy, we have decided to outso...Read More
Specs:
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Cutting 650 ipm
Max Torque 90 ft-lbf
Spindle Nose 4.2" - 29.2"
Drive System Inline Direct-Drive+
Tool-to-Tool 4.2 sec change
Coolant Capacity 55 gal
Table Size: 52" x 18"
Dimensions: 131" x 92" x 101"
Weight: 13,300 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Cutting 650 ipm
Max Torque 90 ft-lbf
Spindle Nose 4.2" - 29.2"
Drive System Inline Direct-Drive+
Tool-to-Tool 4.2 sec change
Coolant Capacity 55 gal
Table Size: 52" x 18"
Dimensions: 131" x 92" x 101"
Weight: 13,300 LBS
Options:

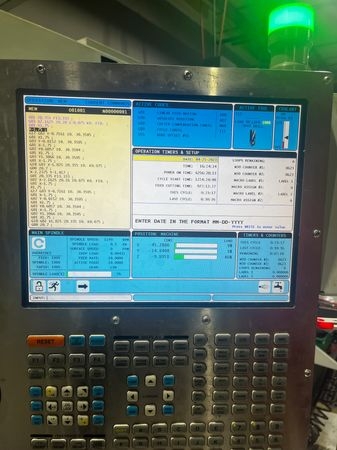

HAAS CNC Control
Probe
Programmable Coolant
Chip Auger
High Intensity Lighting
Probe
Programmable Coolant
Chip Auger
High Intensity Lighting
