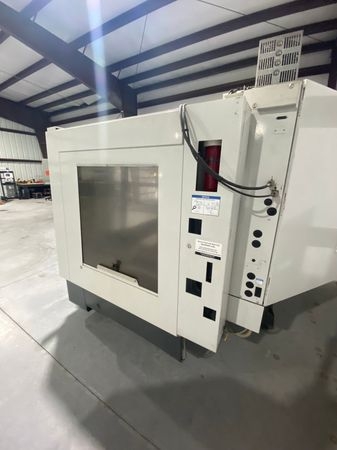

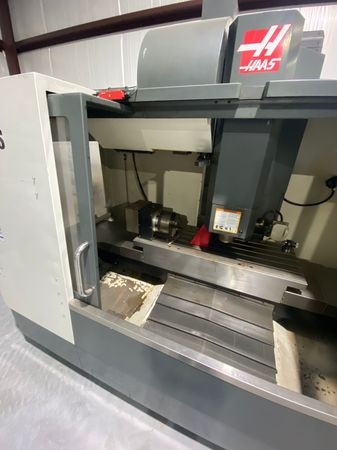

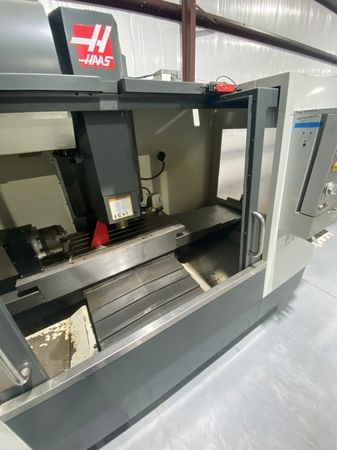

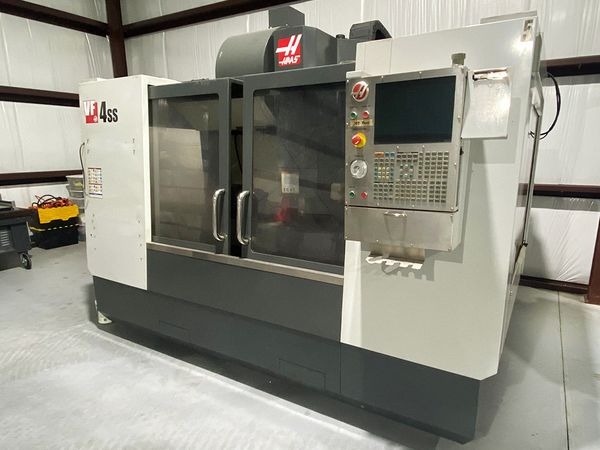

2012 HAAS VF4SS #10353

X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque 90 ft-lbf @ 2000 rpm
Max Weight on Table (evenly distributed) 1750 lb
Table Size: 52" x 18"
Dimensions: 131" x 102" x 109"
Weight: 13,500 LBS

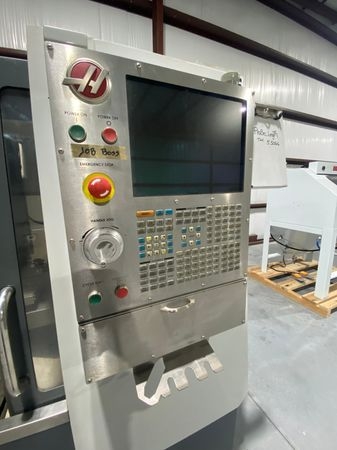

HAAS CNC Control
Probe
Programmable Coolant

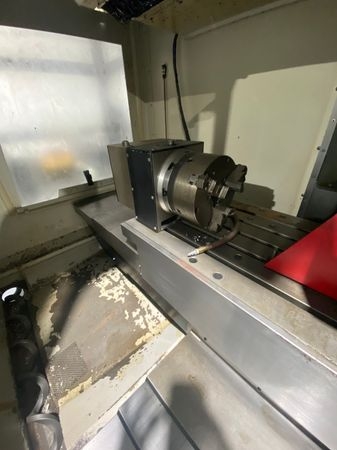

4th Axis Rotary Table
HRT210 SHS Rotary Table
Super Spacer Indexing Head
High Speed Machining

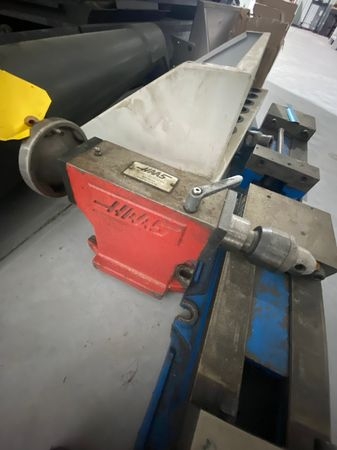

Tailstock

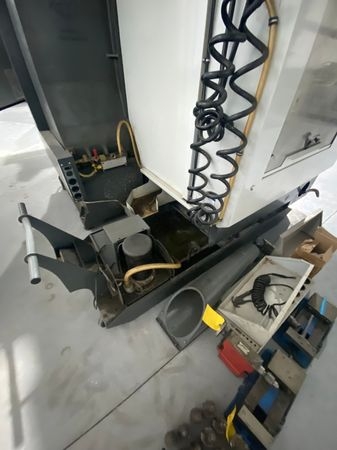

Chip Auger
