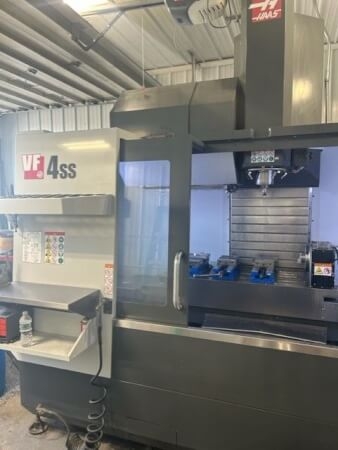

This 2018 HAAS VF4SS Vertical Machining Center is ready to enhance your workshop’s capabilities. Equipped with a 4th Axis Rotary Table upgrade, this machine is capable of delivering high quality results with precision. ...Read More
Notify Me:
Specs:
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque 90 ft-lbf @ 2000 rpm
Max Weight on Table (evenly distributed) 1750 lb
Table Size: 52" x 18"
Dimensions: 131" x 102" x 109"
Weight: 13,500 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque 90 ft-lbf @ 2000 rpm
Max Weight on Table (evenly distributed) 1750 lb
Table Size: 52" x 18"
Dimensions: 131" x 102" x 109"
Weight: 13,500 LBS
Options:
Programmable Coolant
4th Axis Rotary Table
1 Vice Included
Haas HRT Rotary Included
Chip Auger
4th Axis Rotary Table
1 Vice Included
Haas HRT Rotary Included
Chip Auger
