2008 HAAS VF5-50XT

ID:3938
Brand:HAAS
Model: VF5-50XT
Year:2008
Category:Vertical Machining Center
Location:Iowa

Located In Iowa

SHIPPING COST :

Hello!

Machine Overview

Specs:

X Axis Travel: 60"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 62" x 23"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50 CT
Tool Changer: 30+1 ATC
Spindle Nose to Table 7.9"-32.9"
Max Torque 340 ft-lbf
Drive System 2-Speed Gearbox
Max Weight on Table 4000 lbs
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 7"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Dimensions: 168" x 102" x 125"
Weight: 16,250 LBS

Options:

Haas CNC Control
Programmable Coolant
Chip Auger
Thru Spindle Coolant 300 psi (TSC)
55 gallon coolant tank
Visual Quick Code (VQC)
Rigid Tapping
Remote Jog Handle
Extended Travel
2 Speed Gear Drive
30+1 Side Mount Tool Changer

Description:

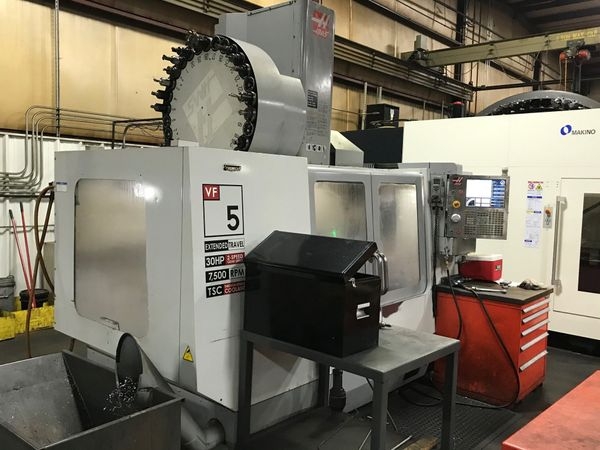

Pre-owned HAAS VF5-50XT 2008 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas CNC Control control. This CNC Machine is currently located in Iowa. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF5-50XT before it's gone.
