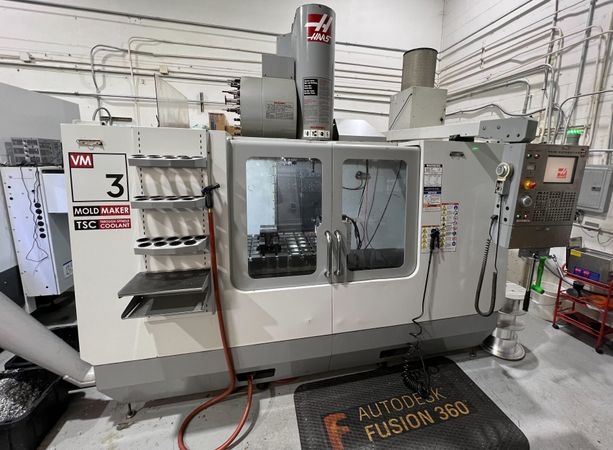

2006 HAAS VM3 #8177

X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 500 ipm
Max Thrust 4,100 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 5" Max Tool Length 13"
Max Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
Coolant Capacity 55 Gal

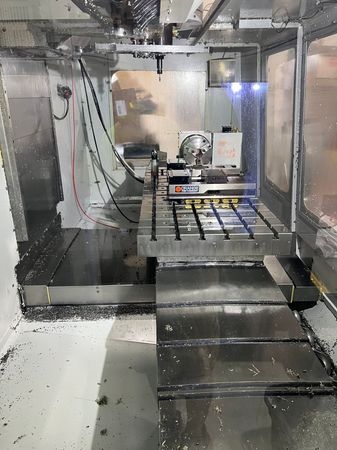

Table Size: 54" x 25"
Dimensions: 164" x 102" x 125"
Weight: 15,300 LBS

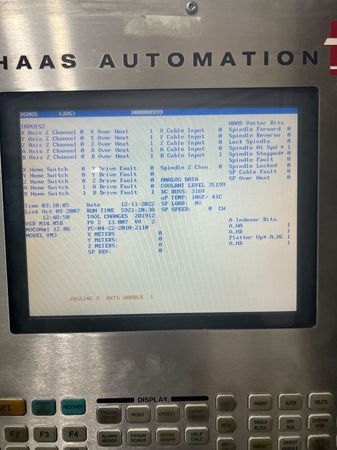

HAAS CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant

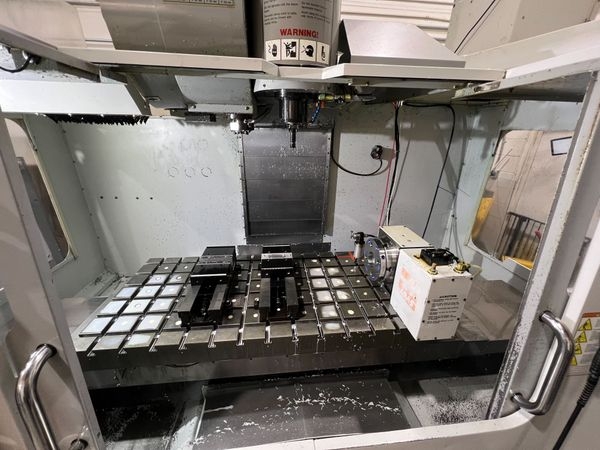

4th Axis Rotary Table
Chip Auger
Remote Jog Handle
4th Axis Drive
HRT210 4th Axis Rotary
Expanded Memory (16 GB)
Ethernet
40 GB Hard Drive
Mistaway Mist Collector
