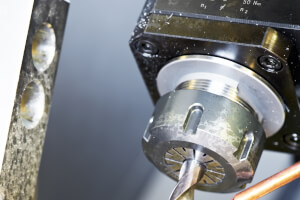

Indicators of a Bad Spindle on a CNC Machine

1. Unusual Noise

Symptoms: Grinding, whining, or knocking sounds coming from the spindle.
Cause: These noises can indicate worn bearings or internal damage within the spindle.
Action: Listen for changes in the normal operating sound of the spindle. Use a stethoscope or vibration analysis tools for a more detailed assessment.

2. Poor Surface Finish

Symptoms: Inconsistent or poor surface finish on machined parts.
Cause: This can be caused by spindle runout or imbalance, which often results from worn bearings or a damaged spindle shaft.
Action: Inspect the surface finish of parts regularly. Use precision measuring tools to check for dimensional inaccuracies.

3. Increased Vibration

Symptoms: Excessive vibration during machining operations.
Cause: Vibration can be due to imbalanced tooling, worn bearings, or spindle misalignment.
Action: Use a vibration analyzer to measure the vibration levels of the spindle. Compare readings to the manufacturer’s specifications.

4. Overheating

Symptoms: Spindle feels excessively hot to the touch or generates heat beyond normal operating levels.
Cause: Overheating can result from insufficient lubrication, bearing failure, or motor issues.
Action: Monitor the spindle temperature using infrared thermometers or temperature sensors. Check the lubrication system and ensure proper cooling.

5. Loss of Accuracy

Symptoms: Decreased precision in machining, resulting in parts not meeting specifications.
Cause: Wear in the spindle bearings or damage to the spindle shaft can lead to a loss of accuracy.
Action: Perform regular calibration checks and alignment tests. Use dial indicators and test bars to assess spindle accuracy.

Diagnosing Spindle Issues

1. Spindle Bearings

Diagnosis: Listen for noise, check for excessive vibration, and inspect the surface finish of parts.
Solution: Replace the bearings. This typically involves disassembling the spindle and replacing the old bearings with new ones.

2. Spindle Motor

Diagnosis: Check for power issues, inconsistent speed, or overheating.
Solution: Inspect the motor windings and connections. Replace or repair the motor if necessary.

3. Spindle Shaft

Diagnosis: Check for runout using a dial indicator. Inspect for visible signs of wear or damage.
Solution: Regrind or replace the spindle shaft if it is damaged or worn.

Issues G Codes Can Cause in a Spindle

1. Incorrect Feed Rates and Speeds

Impact: Using incorrect G-code parameters can cause excessive load on the spindle, leading to overheating or mechanical failure.
Solution: Ensure that the G-code is properly optimized for the material and tooling being used. Verify feed rates and spindle speeds.

2. Improper Tool Change Commands

Impact: Incorrect tool change commands can cause collisions or misalignment, damaging the spindle or tool holder.
Solution: Check the G-code for correct tool change commands and sequences. Simulate the program before running it on the machine.

3. Inadequate Coolant Flow Commands

Impact: Insufficient coolant flow can lead to overheating and increased wear on the spindle and cutting tool.
Solution: Ensure that coolant commands (e.g., M codes for coolant on/off) are correctly programmed in the G-code.

4. Excessive Tool Pressure

Impact: Commands that apply excessive pressure or depth of cut can strain the spindle and lead to premature failure.
Solution: Optimize the G-code to use appropriate cutting parameters and ensure the tool path minimizes stress on the spindle.

Maintenance and Monitoring

1. Regular Maintenance

Routine Checks: Perform regular maintenance checks, including lubrication, cleaning, and inspection of spindle components.
Scheduled Rebuilds: Plan for periodic spindle rebuilds based on usage and manufacturer recommendations.

2. Condition Monitoring

Vibration Analysis: Use vibration sensors to continuously monitor spindle health.
Thermal Monitoring: Install temperature sensors to detect overheating.
Acoustic Emissions: Use acoustic sensors to detect early signs of bearing wear or spindle damage.

Identifying and addressing spindle issues promptly is crucial to maintaining the performance and longevity of your CNC machine. Regular monitoring, maintenance, and optimization of G-code can help prevent spindle failures and ensure consistent machining quality. For specific diagnostic tools and procedures, refer to the manufacturer’s guidelines and consult with CNC maintenance professionals.
