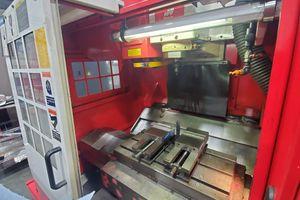

This 2018 Matsuura MX330 5 Axis CNC Vertical Machining Center is not only rare, but is also one of our most genuine pristine finds. This Japanese high speed Machining Center has a very low cutting time of only...Read More
Specs:
Y Axis Travel: 18.31"
X Axis Travel: 17.13"
Z Axis Travel: 22.02"
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Rapid Rate X Axis: 40 IPM
Rapid Rate Y Axis: 40 IPM
Rapid Rate Z Axis: 40 IPM
200V +/- 10% 3 Phase
Table Size: 13" x 13"
Dimensions: 124" x 74" x 113"
Weight: 14,000 LBS
Max Table Load: 176 LBS
X Axis Travel: 17.13"
Z Axis Travel: 22.02"
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Rapid Rate X Axis: 40 IPM
Rapid Rate Y Axis: 40 IPM
Rapid Rate Z Axis: 40 IPM
200V +/- 10% 3 Phase
Table Size: 13" x 13"
Dimensions: 124" x 74" x 113"
Weight: 14,000 LBS
Max Table Load: 176 LBS
Options:
Matsuura G-Tech 31i
Probe
Coolant Thru Spindle
5 Axis
20,000 RPM Grease Lubricated Spindle
60 Tool ATC
8 Sets of Extra M Functions For 3rd Party Option Integration - Includes Relay Board
Scale Feedback for X, Y, Z Axis
Environmental Thermal Displacement Compensation
3 Color Patrol Light: Red, Yellow, Green
Air Driven Rotary Wiper on Operator Window
Prepared for Through Table Hydraulics
MMS (Matsuura Intelligent Meister System)
Scale Feedback on A & C axis
1,000 PSI Coolant Through Spindle Preparation
93 Gallon Coolant Tank
Internal Spiral Chip Augers
Z=Axis Thermal Displacement Compensation System
Spindle Oil Cooler with Overload Protection
Auto Grease Supply Unit for Feed Axes
Chip Flush/Flow
Advanced Tap (AD-TAP) Function
Intelligent Precision Control (IPC) Function
Software Tool for Memory Card Program Operation & Editing
Tool Offset Pairs (999 Pairs)
Addition of Workpiece Coordinate System (300 Pairs)
Optional Block Skip 9
Program Restart
Coordinate System Rotation
Tool Life Management
Part Program Storage Size 8 Megabytes
High Speed Skip
Common Variable Expansion (#100-#199 /#500-#999)
High Speed / High Precision Package + 5 Axis Package
NANO Smoothing 1 & 2
Optimal Torque Acceleration & Deceleration
Data Server Package with Ethernet Connectivity and 1 Gigabyte of Program Storage
Tool Center Point Control
3D Cutter Compensation
Tilted Working Plane Command
Tool Posture Control by Tool Center Point Control
Work Set-up Error Compensation
Inverse Tool Feed
PQI Renishaw OMP- 400 Spindle Probe & NC Laser Broken Tool Detection Combo
Kennametal Tooling Certificate Available!
