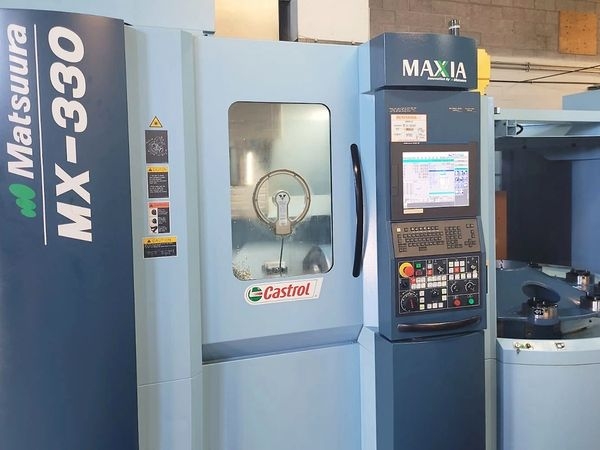

2020 MATSUURA MX330

This 2020 MATSUURA MX330 is an exceptional find for anyone looking for a versatile, high-performing machine tool. It comes equipped with an impressive set of options including a Probe, Chip Conveyor, Coolant Thru Spindle, and 5 Axis capabilities.

Some of its key specifications are as follows: It has an X-Axis travel of 18 inches, Y-Axis travel of 17 inches, and a Z-Axis travel of 22 inches. The 5-Axis design allows for complex machining with a max work size of 330 mm diameter and 320 mm height. The working surface is 250 mm in diameter, and it has a loading capacity sizable enough for most applications within its class.

The machine features a 40 Taper spindle and a rapid spindle speed of 20,000 RPM. With an Automatic Tool Changer (ATC) capable of holding up to 90 tools, it is especially suited for industries such as automotive, high performance, die/mold, and medical sectors.

Some critical equipment included with the machine is the Matsuura G-Tech 31i Control panel, a 20,000 RPM air/oil spindle, and a 90-position tool changer. For your convenience, an LNS Turbo MH250 chip conveyor is installed to manage debris efficiently. It also includes both tool and part probes, a 10-pallet changer for varied operations, a mist collector, chip auger, and a powerful thru-spindle coolant system operating at 300 psi. Additionally, an air dryer is included to further enhance functionality.

This Matsuura MX 330 is minimally used and part of the reputable MX Series, known for a generous machining envelope and rapid setup times. The series is designed for versatility, matching a broad range of applications and materials. Matsuura's MX Series is regarded as a standout in entry-level 5-axis machines, integrating OEM automation solutions right from its conception.

If you're in search of a machine that combines sophisticated 5-axis capabilities with user-friendly features designed for diverse industries, this MX330 model with its robust assortment of options and equipment is an excellent investment.
