Hello!

Machine Overview

Specs:
Specifications (subject to buyer verification):
Maximum Swing Over Upper Turret......... 14.56"
Maximum Swing Over Lower Turret......... 12.598"
Maximum Machining Diameter: Chucking.... 13.54"(Upper)
Maximum Machining Diameter: Chucking.... 8.26"(Lower)
Maximum Distance Between Chuck Jaws..... 33.875"

MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose............................ A2-6
Spindle Bore............................ 2.99"
Maximum Bar Work.... ................... 2.56"
NOTE: Maximum bar work and maximum spindle speed
depends upon optional chuck package.
Spindle Speed........................... 35-5,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg. 3,600,000 Positions
Spindle Horsepower (Cont./30 Min.)...... 20/30 HP (AC)
Spindle Torque (25% ED)................. 344.4 ft-lbs.

SECOND SPINDLE SPECIFICATIONS (R)
8" BB08 Chuck Package with Y1225 Non-thru cylinder
Spindle Nose............................ A2-6
Spindle Bore............................ 2.99"
Spindle Speed........................... 35-5,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Min.)...... 20/30 HP (AC)
Spindle Torque (25% ED)................. 344.4 ft-lbs.

UPPER / LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... 12 pos. Drum VDI
Tool Shank Height....................... 1"
Tool Size (Boring Bar Max. Dia.)........ 1.5"
Total Number of Tools................... 12
Tool Selection Method................... Bi-Directional
Tool Index Time (1 Step)................ 0.2 sec.
Rotary Tool Spindle Speed............... 35-6,000 RPM
Rotary Tool Spindle Horsepower/(10 min). 7.5 HP
Rotary Tool Torque (3 min.)............. 25.8 ft-lbs,
Maximum End Mill........................ 0.75" Dia.
Maximum Drill........................... 0.75" Dia.
Maximum Tap............................. M20 x 2.5

AXIS TRAVELS:
X1-Axis................................. 8.2"
Y1-Axis................................. +/-2.0"
Z1-Axis................................. 29.875"
X2-Axis.Lower........................... 5.5625"
Y2 Axis Lower........................... +0.75"/-2.0"
Z2 Axis Lower........................... 32.125"
W Axis.................................. 34.075"

AXIS RAPID RATES:
X1-Axis................................. 1181 IPM
Y1-Axis................................. 1024 IPM
Z1-Axis................................. 1417 IPM
X2-Axis Lower........................... 945 IPM
Y2-Axis Lower........................... 787 IPM
Z2 Axis Lower........................... 1417 IPM
W-Axis.................................. 1181 IPM
C1/C2-Axis.............................. 555 RPM

GENERAL SPECIFICATIONS:
Floor Space (WxL)....................... 137.8" x 103"
Machine Height.......................... 97.8"
Total Power Required (Machine Only)..... 61.4 KVA
NOTE: Actual Machine Main Transformer
KVA Rating Will be Greater.
Air Requirements........................ 72.5PSI/8.8CFM
Machine Weight.......................... 26,235 lbs.
Options:
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Mazatrol Matrix Control
15” Color LCD
EIA/ISO Code Input Function
Cylindrical G07 & Polar Coordinate G12
Milling-Spindle Synchronous Tapping
Inch/Metirc Conversion
Cardbus I/F (2-Slot)
LAN Port
USB I/F (2-Port)
Y-Axis Control (Upper & Lower Turret)
Absolute Positioning Sys (N/A with S/F)
Hi-Pressure Coolant System 213 PsI w/Temperature Control
C-Axis 0.0001 Degree Incr. (1st Spindle)
2nd Spindle C-Axis 0.0001 Degree Incr.
Main & Sub Spindle Synchronization
Chuck Air Blast (2nd Spindle)
12 Position Drum Turret (VDI: Upper)
12 Position Drum Turret (VDI: Lower)
Automatic Tool Eye 1st and 2nd Spindles
Auto Chuck Jaws Open/Close (1&2 Spindle)
Chuck Open//Close Confirm (1 and 2 Spindle) Relocation Devie
Relocation Device
MT Connect Prep
Windows XP Operating System for Mazak Machine Control
Workpiece Unload & Conveyor 3” Dia x 7” L x 11 lbs
Chip Conveyor Side Disposal (Hinge Type)
Turret Air Blast (Upper & Lower)
Chuck Air Blast (1st Spindle)
Air Blow for Work Transfer
Air Blast Through First Spindle
LNS Quick Load Servo 80-S2 Short Magazine Barfeed
Royal Accu-Length A6-S26 Collet Chuck
8” Chuck 2nd Spindle
(3) Live Tool Holders and Misc. Static Holders
Description:

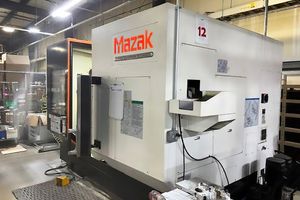

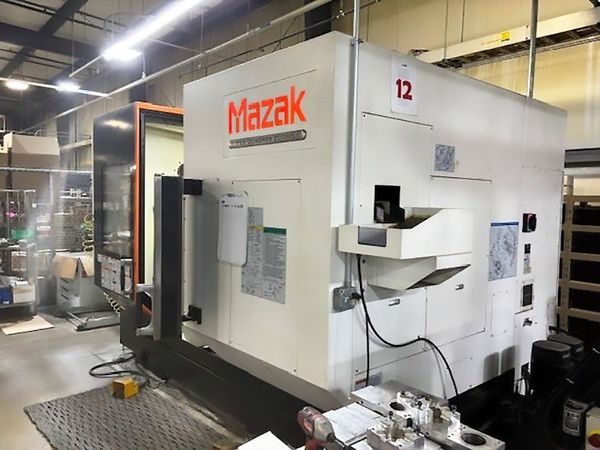

This 2011 MAZAK HYPERQUADREX 200MSY CNC Lathe is packed with features to handle complex machining tasks effortlessly. Aimed at improving automation and precision, this lathe caters to various industrial needs with multiple enhancements.

Key features include a Chip Conveyor for efficient waste management and a Tool Presetter to ensure accurate tool alignment before operations. Its Bar Feeder and Parts Catcher streamline the loading and unloading process, allowing continuous work cycles with minimal manual intervention. Live Tooling, Sub Spindle, and Y Axis capabilities drastically enhance its operational versatility.

Engineered with 5 Axis functionality and controlled via the Mazatrol Matrix Control featuring a 15” Color LCD, this lathe simplifies intricate jobs. The provision for EIA/ISO Code Input Function, along with options for Cylindrical G07 & Polar Coordinate G12, widens the programming possibilities for varied designs. It further supports Milling-Spindle Synchronous Tapping and Inch/Metric Conversion for flexible task handling.

The Cardbus I/F (2-Slot), LAN Port, and USB I/F (2-Port) ensure easy connectivity and data access. Its Y-Axis Control for both Upper & Lower Turrets enhances multi-tasking capability. With its Absolute Positioning System, accurate placement becomes straightforward. Adding to the list, the Hi-Pressure Coolant System maintains optimal temperature, thus preventing heat-related errors.

Precision is achieved with Main & Sub Spindle Synchronization, boasting C-Axis 0.0001 Degree Incrementation for both spindles. The lathe automatically controls tool movements with its 12 Position Drum Turrets for Upper and Lower areas. Automatic Tool Eye for both spindles, along with Auto Chuck Jaws Open/Close, simplifies the setup process.

Furthermore, its MT Connect Prep aligns with modern manufacturing connectivity standards, while the Windows XP Operating System for Mazak Machine Control ensures a familiar interface for operators. The inclusion of Workpiece Unload & Conveyor, Chip Conveyor Side Disposal, and comprehensive air blast features contribute to seamless operational efficiency.

The LNS Quick Load Servo 80-S2 Short Magazine Barfeed aids in quick adjustments and smooth operations. Furthermore, the Royal Accu-Length A6-S26 Collet Chuck and 8” Chuck for the second spindle provide essential clamping support. Complemented by three Live Tool Holders and various Static Holders, this CNC lathe meets a wide array of machining demands, making it a versatile asset for diverse manufacturing environments.
