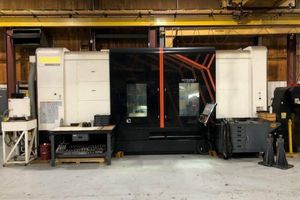

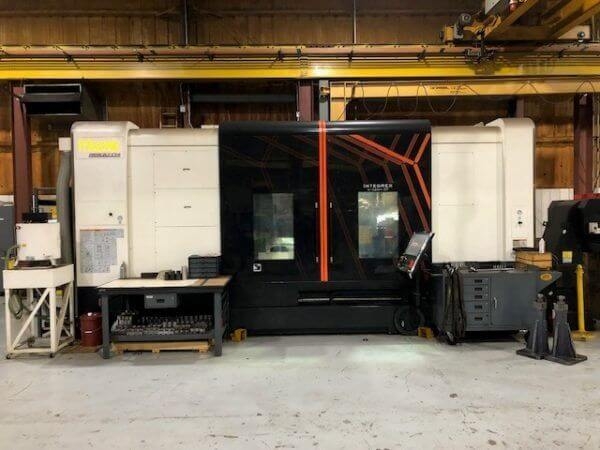

2016 MAZAK INTEGREX e420HST

This 2016 MAZAK INTEGREX e420HST is a versatile machine tool equipped with essential features for complex machining tasks. It offers advanced capabilities with options like a Chip Conveyor, Live Tooling, Sub Spindle, Y Axis, and 5 Axis machining.

The machine’s robust specifications include a Max Turning Length of 80 inches and a Max Turning Diameter of 26.3 inches. Both the Main and Sub Spindles have a Bore of 5.19 inches, facilitating diverse workpiece handling with ease.

The substantial travel capacities are noteworthy, with the X-Axis measuring 33.27 inches (Upper) and 14.25 inches (Lower), complemented by a Y-Axis of 16.54 inches and Z-Axis of 82.2 inches (Upper) and 74.53 inches (Lower). This allows for extensive maneuverability during operations.

Tooling is supported by an 80 ATC Capto C6, ensuring flexibility in tool management. The Main Spindle features a chuck size of 15 (Kitagawa B-15A11), a speed of 2,500 RPM, power of 40HP, and a Nose spec of A2-11. The Sub Spindle mirrors these specifications, enhancing dual operation functionality.

The Milling Spindle offers significant versatility with a 240-degree programmable B-Axis, speed reaching 12,000 RPM, and power of 30HP, catering to dynamic milling tasks.

The machine has a footprint of approximately 210 x 115 x 115 inches and an operational weight of about 48,000 lbs, making it manageable within varied shop floor setups.

Additionally, the equipment includes a Mazatrol SmoothX Control system for seamless operation. The B-Axis Milling Spindle and 9-Station Lower Turret further enhance its utility. Equipped with Mazak Super Flow V8M Variable 1,000 PSI TSC and C1/C2 Spindle Sync, it delivers complex functionality with ease.

Additional features include a Renishaw RMP600 for precision, a Tool Setter for accuracy, Chip Conveyor for debris management, and a Mist Collector for a clean working environment. Manuals available ensure ease of setup and operation.
