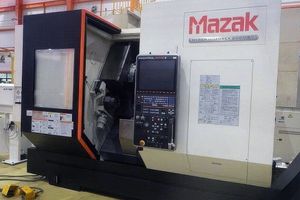

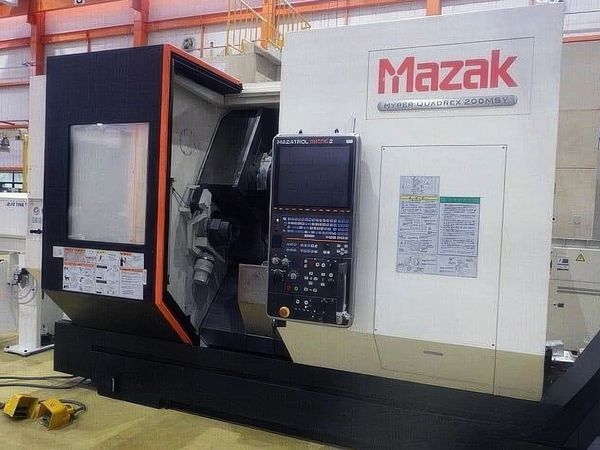

MAZAK HYPERQUADREX 200MSY AI Chat
Loading ...

Machine Overview

Specs:
Specifications
Working Capacity

Max Swing Over Upper Turret: 14.56"
Max Swing Over Lower Turret: 12.598"
Max Turning Diameter (Upper): 13.54"
Max Turning Diameter (Lower): 8.26"
Max Distance Between Chuck Jaws: 33.875"

Main Spindle (Left)

Spindle Speed: 35–5,000 RPM
Spindle Motor: 20/30 HP (Continuous / 30-Minute)
Spindle Torque: 344.4 FT-LBS (25% Duty Cycle)
Spindle Nose: A2-6
Spindle Bore: 2.99"
Max Bar Capacity: 2.5" (To Be Verified)
Spindle Indexing: 0.0001° (3,600,000 Positions)

Sub-Spindle (Right)

Spindle Speed: 35–5,000 RPM
Spindle Motor: 20/30 HP (Continuous / 30-Minute)
Spindle Torque: 344.4 FT-LBS (25% Duty Cycle)
Spindle Nose: A2-6
Spindle Bore: 2.99"
Spindle Indexing: 0.0001° (3,600,000 Positions)

Turret & Live Tooling

Turret Type: 12-Position Drum VDI
Total Tool Stations: 12
Tool Shank Height: 1"
Max Boring Bar Diameter: 1.5"
Tool Selection: Bi-Directional
Tool Index Time: 0.2 Seconds
Live Tooling Speed: 35–6,000 RPM
Live Tooling Motor: 7.5 HP (10-Minute)
Live Tooling Torque: 25.8 FT-LBS (3-Minute)
Max End Mill Diameter: 0.75"
Max Drill Diameter: 0.75"
Max Tap Size: M20 x 2.5

Axis Travels

X1 Axis Travel: 8.2"
Y1 Axis Travel: ±2"
Z1 Axis Travel: 29.875"
X2 Axis Travel (Lower): 5.5625"
Y2 Axis Travel (Lower): +0.75" / -2"
Z2 Axis Travel (Lower): 32.125"
W Axis Travel: 34.075"

Rapid Traverse Rates

Rapid Rate X1 Axis: 1,181 IPM
Rapid Rate Y1 Axis: 1,024 IPM
Rapid Rate Z1 Axis: 1,417 IPM
Rapid Rate X2 Axis: 945 IPM
Rapid Rate Y2 Axis: 787 IPM
Rapid Rate Z2 Axis: 1,417 IPM
Rapid Rate W Axis: 1,181 IPM
C1/C2 Axis Speed: 555 RPM

General Specifications

Dimensions: 137.8" x 103" x 97.8"
Weight: 26,235 LBS
Power Requirement: 61.4 kVA (Machine Only)
Air Requirement: 72.5 PSI / 8.8 CFM

Equipped With (Subject to Buyer Verification)
Main Spindle Prepared for BB08 8" 3-Jaw or Collet Chuck
Sub-Spindle with BB08 8" Chuck Package and Y1225 Non-Through Cylinder
Options:
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Mazatrol Matrix Nexus 2 Control
Twin Turret with Milling
Description:

This 2013 MAZAK HYPER QUADREX 150MSY is a versatile machine tool that will enhance your production capabilities. Specifically designed for precision turning, milling, and drilling operations, this model is a valuable addition to any manufacturing facility looking to boost its capabilities. With the MAZAK HYPER QUADREX, you can undertake complex machining tasks with ease.

Featuring dual spindles and twin turrets, the machine can handle multiple operations in one setup. This feature saves both time and resources. The advanced control system is user-friendly, allowing operators to quickly adapt and make necessary adjustments to achieve desired outcomes. The machine's design contributes to smoother and faster operations, optimizing production throughput.

With a robust build, the 2013 MAZAK HYPER QUADREX 150MSY addresses the needs of various industries. The machine is equipped with a tool setter, chip conveyor, and tailstock, offering adaptability for a wide range of workpieces. The spindle's stability ensures that operations are consistent, improving the quality of finished products.

This used model has been well-taken care of and shows minimal signs of wear, ensuring that it remains a suitable option for your needs. Regular maintenance records are available, reflecting the machine's sound condition. It is an opportunity to own a high-capability machine without the cost of a brand-new purchase.

Whether you're expanding your facility's capabilities or seeking to replace an existing machine, this MAZAK model is a cost-effective solution that supports various applications. Seize the opportunity to integrate this machine into your workflow, where it can play a significant role in achieving production goals.
