2000 MAZAK INTEGREX 400Y

ID:4912
Brand:MAZAK
Model: INTEGREX 400Y
Year:2000
Category:CNC Lathe
Location:Louisiana

Located In Louisiana

SHIPPING COST :

Hello!

Machine Overview

Specs:

Bar Capacity: 3"
Chuck Size: 12"
Spindle Speed: 3,000 RPM
Spindle Motor: 40 HP
X Axis Travel: 11.83"
Z Axis Travel: 43.11"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 40 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 24"
Max Turning Length: 39.3"
Max Swing: 24"
Spindle Bore 3.64"
Spindle Nose A2-8
Spindle Torque882 Ft. Lbs
X-Axis Travel 22.83"
Y-Axis Travel 8.26"
Z-Axis Travel 43.11"
B-Axis Travel 225 Degrees
B-Axis Index .001 Degrees
C-Axis Index .001 Degrees
Tool Capacity 80 Tools
Maximum Tool Diameter 3.54" / 4.72"
Maximum Tool Length 11.8"
Maximum Tool Weight 22 LBS
Milling Motor 20 HP
Milling Speeds 6000 RPM
Weight: 20,000 LBS

Options:

Mazatrol Fusion 640MT
Chip Conveyor

Description:

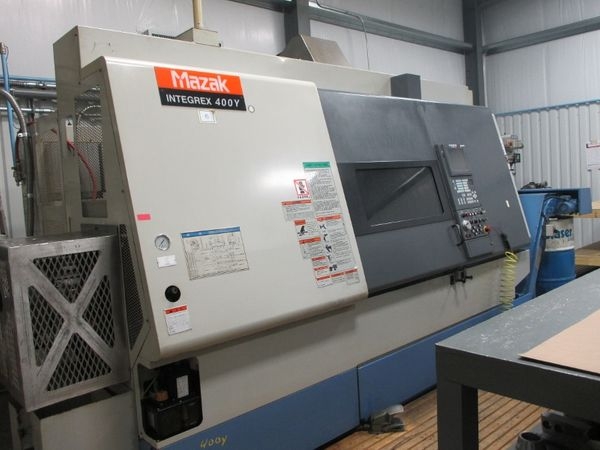

Pre-owned MAZAK INTEGREX 400Y 2000 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Mazatrol Fusion 640MT control. This CNC Machine is currently located in Louisiana. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this INTEGREX 400Y before it's gone.
