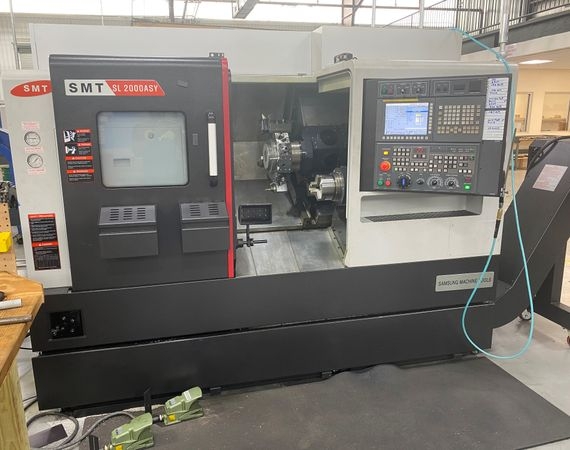

Pre-owned SAMSUNG SL2000ASY 2018 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc Oi-TF control. This CNC Machine is currently located in Texas. This SAMSUNG CNC Lathe is available for a limited time. Get a quote today on this SL2000ASY before it's gone.
Notify Me:
Specs:
EQUIPPED WITH:
12' LNS BARFEEDER
FANUC Oi-TC CONTROL
LNS HYDROBAR SPRINT 542 MAGAZINE BARFEEDER (2010)
Y-AXIS
SUB SPINDLE
FULL C-AXIS LIVE MILLING ON MAIN & SUB SPINDLE
(2) 6", 3-JAW SAMCHULLY HYDRAULIC CHUCKS (7 EXTRA JAW SETS)
(1) ROYAL QG65 COLLET CHUCK
(1) ROYAL 5C COLLET CHUCK
(7) LIVE TOOLS: (3) AXIAL AND (4) RADIAL ($19,000 VALUE)
TOOL PRESETTER
PARTS CATCHER
PNEUMATIC PARTS EJECTOR
CHIP CONVEYOR
BOX WAY
SPECIFICATIONS:
Bar Capacity: 2 "
Chuck Size: 6 "
Spindle Speed: 6000 RPM
Spindle Motor: 25 HP
X Axis Travel: 8.4 "
Z Axis Travel: 22 "
Rapid Rate Z Axis: 1181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 944 IPM
Max Turning Dia: 15.5 "
Max Turning Length: 19.29 "
Max Swing: 25.59 "
Dimensions: 110" x 60" x 76"
Weight: 10000 LBS
Description:
COOLANT THROUGH SPINDLE PREPERATION FOR 1000 PSI
SPLIT STATION INDEXING ALLOWS UP TO 24 TOOLS
Z-AXIS HP (2750 LBS CONTINUOUS THRUST)
(128) OFFSETS & (631) MACRO VARIABLES
COOLANT FLUSH THROUGH SUB SPINDLE
RIGID TAPPING (MAIN & SUB SPINDLE
4 AXIS SIMULANEOUS INTERPOLATION
AIR BLOW (MAIN & SUB SPINDLE)
HELICAL INTERPOLATION
ROLLING TOOL BOX
LIGHT TOWER
OIL SKIMMER
WORK BENCH
BAR PULLER
ADDITIONAL ACCESSORIES:
(1) CUTOFF TOOL HOLDER
(3) DRILL TOOL HOLDERS
(4) TURN TOOL HOLDERS
ER25 AND ER16 COLLETS
ER EXTENDED HOLDERS
DRILL SLEEVES
CHANNEL SETS, PUSHERS & COLLETS FOR BARFEED
-Machine is in shop and under power
-Call/email for more information and/or video
12' LNS BARFEEDER
FANUC Oi-TC CONTROL
LNS HYDROBAR SPRINT 542 MAGAZINE BARFEEDER (2010)
Y-AXIS
SUB SPINDLE
FULL C-AXIS LIVE MILLING ON MAIN & SUB SPINDLE
(2) 6", 3-JAW SAMCHULLY HYDRAULIC CHUCKS (7 EXTRA JAW SETS)
(1) ROYAL QG65 COLLET CHUCK
(1) ROYAL 5C COLLET CHUCK
(7) LIVE TOOLS: (3) AXIAL AND (4) RADIAL ($19,000 VALUE)
TOOL PRESETTER
PARTS CATCHER
PNEUMATIC PARTS EJECTOR
CHIP CONVEYOR
BOX WAY
SPECIFICATIONS:
Bar Capacity: 2 "
Chuck Size: 6 "
Spindle Speed: 6000 RPM
Spindle Motor: 25 HP
X Axis Travel: 8.4 "
Z Axis Travel: 22 "
Rapid Rate Z Axis: 1181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 944 IPM
Max Turning Dia: 15.5 "
Max Turning Length: 19.29 "
Max Swing: 25.59 "
Dimensions: 110" x 60" x 76"
Weight: 10000 LBS
Description:
COOLANT THROUGH SPINDLE PREPERATION FOR 1000 PSI
SPLIT STATION INDEXING ALLOWS UP TO 24 TOOLS
Z-AXIS HP (2750 LBS CONTINUOUS THRUST)
(128) OFFSETS & (631) MACRO VARIABLES
COOLANT FLUSH THROUGH SUB SPINDLE
RIGID TAPPING (MAIN & SUB SPINDLE
4 AXIS SIMULANEOUS INTERPOLATION
AIR BLOW (MAIN & SUB SPINDLE)
HELICAL INTERPOLATION
ROLLING TOOL BOX
LIGHT TOWER
OIL SKIMMER
WORK BENCH
BAR PULLER
ADDITIONAL ACCESSORIES:
(1) CUTOFF TOOL HOLDER
(3) DRILL TOOL HOLDERS
(4) TURN TOOL HOLDERS
ER25 AND ER16 COLLETS
ER EXTENDED HOLDERS
DRILL SLEEVES
CHANNEL SETS, PUSHERS & COLLETS FOR BARFEED
-Machine is in shop and under power
-Call/email for more information and/or video
Options:
Fanuc Oi-TF
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
