Seller Needs:
$82,500|
2156
|
1

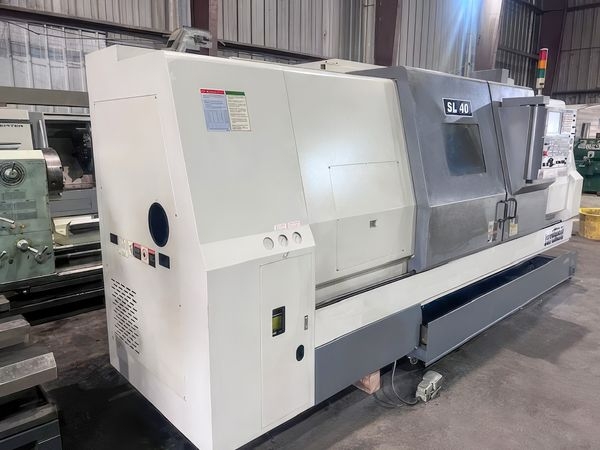

This 2014 SAMSUNG SL40 CNC Lathe is a great piece of machinery that is currently located in Houston, TX. Designed with Fanuc 0i-TD control, this machine is still up and running. It has been well taken care of and continues to...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 4.63"
Chuck Size: 18"
Spindle Speed: 1,800 RPM
Spindle Motor: 30 HP
X Axis Travel: 11"
Z Axis Travel: 63.2"
Rapid Rate X Axis: 472 IPM
Rapid Rate Z Axis: 590 IPM
Turret Tools: 10 Station
Max Turning Dia: 19.3"
Max Turning Length: 60.2"
Max Swing: 26.8"
Dimensions: 197" x 75" x 87"
Weight: 20,500 LBS
Chuck Size: 18"
Spindle Speed: 1,800 RPM
Spindle Motor: 30 HP
X Axis Travel: 11"
Z Axis Travel: 63.2"
Rapid Rate X Axis: 472 IPM
Rapid Rate Z Axis: 590 IPM
Turret Tools: 10 Station
Max Turning Dia: 19.3"
Max Turning Length: 60.2"
Max Swing: 26.8"
Dimensions: 197" x 75" x 87"
Weight: 20,500 LBS
Options:
Fanuc 0i-TD
Chip Conveyor
Tool Presetter
Tailstock
Hydraulic Chuck
Programmable Hydraulic Tailstock (body & quill)
2 Speed Geared Spindle
Box Way Construction
Tool Presetter
Chip Conveyor
Tool Presetter
Tailstock
Hydraulic Chuck
Programmable Hydraulic Tailstock (body & quill)
2 Speed Geared Spindle
Box Way Construction
Tool Presetter
Seller:
GaryL978
Location:
TX
