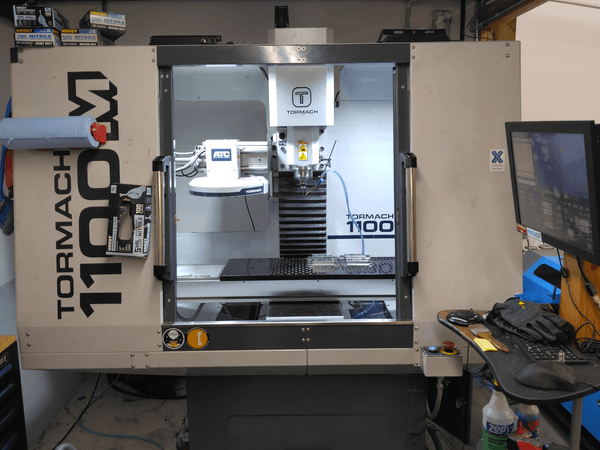

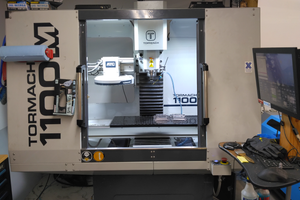

2023 TORMACH 1100M

Table Size: 34.95" x 34.95"
Max Table Weight: 500 lbs.
Y Axis Travel: 11"
X Axis Travel: 18"
Z Axis Travel: 16.2"
Spindle Nose to Table Top
Spindle Motor: 1.5 HP
Spindle Speed: 7,500 RPM
Spindle Taper: R8
Spindle Nose to Table Max. Clearance: 18"
Spindle Centerline to Machine Column: 11"
ATC Positions: 10 + 1

EQUIPPED WITH:
Tormach CNC Control
10 Station ATC
MicroArc 4th Axis (never used)
3-Jaw Chuck and 5C Collet
SMW 4th Axis Sub Plate
Fog Buster Coolant System
Saunder's Machine Works Fixture Plate
3" X 6" Machinist Vise Mini Pallet
Digital Passive Probe
Tool Height Setter
Quick Grip Tool Change Post
SMW low profile modular vise system
Tension / Compression Tapping System
Full Collet Set
Brand New Slitting Saw
Superfly Face Mill
Misc. Inserts for Tooling Heads

Tooling List Included:
Full Collet Set (fraction 3/64-½ with extra ½,?,1/8 )
Tool Holder Set
16 qty er20 collet holders
5 qty ½ set screw
3 qty ? set screw
3 qty 5/16 set screw
4 qty ¼ set screw
2 qty JT1 drill chuck
4 qty JT2 drill chuck
3 qty JT6 drill chuck
QM modular high feel steel milling head
1 inch shear hog aluminum high feed milling head
¾ inch shear hog aluminum high feel milling head
2 qty slitting saw holder
Brand new slitting saw set in various milling widths and diameters
Superfly face mill
2 inch face mill (2 tooth)
Multiple inserts for all insert milling tools listed above for both steel and aluminum
6 inch machinist vice (includes steel jaw set and machinable steel jaws)
V-block set

Machine Footprint: 69" L × 56.5" W
Machine Height: 96" H
Machine Weight: 1,600 lb (726 kg)
Power Requirements: Single-Phase 230 Vac, 50/60Hz, 20A breaker

PathPilot Control
Probe
Programmable Coolant
4th Axis Rotary Table
