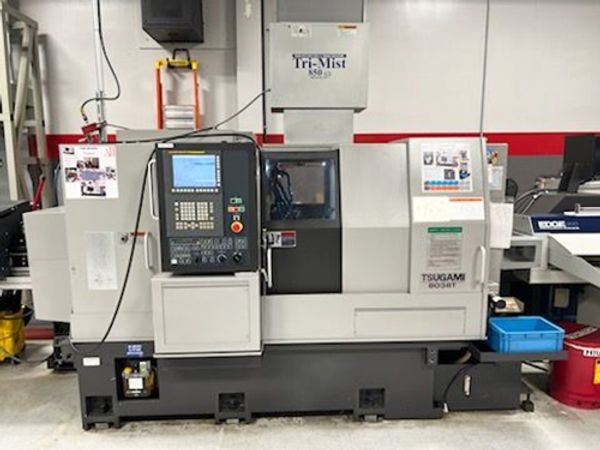

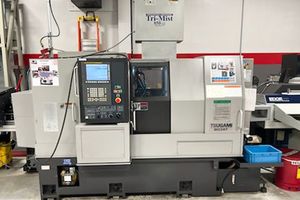

2017 TSUGAMI B038T

Bar Capacity: 1.5"
Max Turning Length: 9.84"
Number of Axes 8
Names of Axes X1, X2, X3, Z1, Z2, Z3, Y2, Y3
Working Bar stock Diameter: 38mm
Maximum Machining Length 250mm
Maximum Drilling Diameter 16mm
Back Spindle - turret Maximum tapping Size M14
Maximum Chucking Diameter 38mm
Front tool post Max Tapping Size M12
Maximum Crossing Drilling Diameter 10mm
Turret Maximum Crossing Tapping size M6
Maximum Rotary Tool Drilling Diameter 16mm
Back Tool Post Max Rotary Tooling Tapping Size M10
Max Rotary Tooling Drilling Diameter 8mm
Max rotary tool tapping size M6
Max fixed tool drilling diameter 10mm
Max fixed tool tapping size M10
Main Spindle Speed 200 - 5000 min
Back spindle speed 200 - 7000 min
Cross drill speed on front tool post 200 - 5,000 min (optional)
Rotary tool speed on turret 200 - 8,000 min
Dimensions: 135" x 74" x 72.4"
Weight: 13,640 LBS

FANUC 31i-B
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
No tooling included
Edge FMB Turbo 338 Barfeed w/ 2 channels
Long pusher kit
Micro fine Chip Conveyor
S2 Chiller Pump, 2000 psi High Pressure coolant pump
Mist Buster with Hepa Filter
Fire Trace System
Edge Technologies Rebel 80 Unloader
