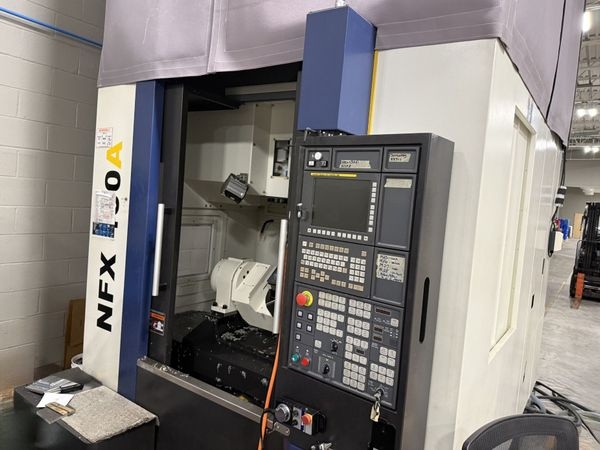

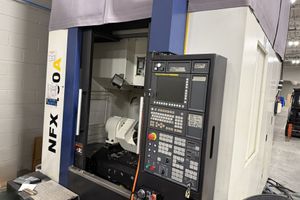

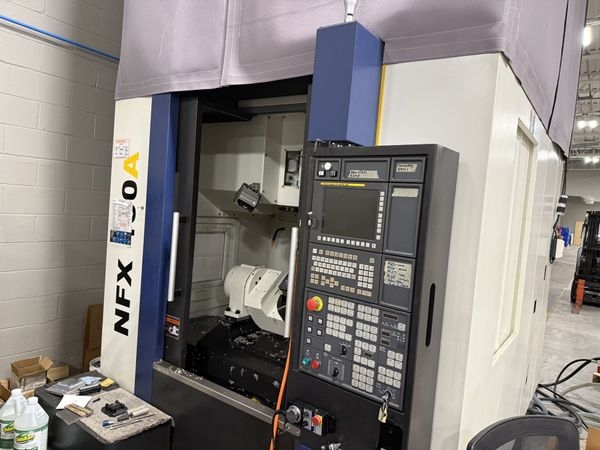

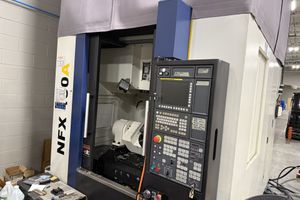

2021 YCM NFX400A

FANUC 31i-MB5+ Control

X-Axis Travel: 650 mm / 25.59"
Y-Axis Travel: 520 mm / 20.47"
Z-Axis Travel: 480 mm / 18.89"
A-Axis Travel: 150° (+30°/-120°)
C-Axis Travel: 360°
Spindle Speed: 100 to 12,000 RPM
Power: 22kW / 30 HP (max), 11kW / 15 HP (S2 30 min), 7.5kW / 10 HP (cont.)
Torque: 70 Nm / 51.6 ft-lb (S2 30 min), 47.8 Nm / 35.2 ft-lb (cont.)
Taper: Big Plus CAT40
Chiller: Standard
Table Type: Trunnion A/C
C-Axis Diameter: ø350mm / ø13.77"
C-Axis Rotation: 360°
A-Axis Tilt: 150° (+30°/-120°)
Load Capacity: 200kg / 440 lbs.
Max Workpiece: ø400mm / ø15.74" diameter x 310mm / 12.2" deep
ATC Capacity: 40 Tools Standard (60/90/120 optional)
Tool-to-Tool: 1.8 sec
Chip-to-Chip: 6.5 sec
Max Tool Diameter: 76mm / 2.99" (all pockets full), 125mm / 4.92" (adjacent empty)
Max Tool Length: 280mm / 11.02" | Max Tool Weight: 6kg / 13.2 lbs.
Renishaw OMP400 Spindle Probe + TS27R Tool Setter
Kinematics/AxiSet Calibration Package
Jorgensen Chip Conveyor w/EcoFilter
Smooth TCP (STCP) | Tilted Work Plane (TWP)
1000 PSI Coolant Through Spindle (Chip Blaster D30-70)
Royal Mist Collector
5th Axis Workholding Package
Central Auto-Oil Lubrication

Utilities:
Power: 220V / 3-Phase / 60Hz / 47 KVA / 123 AMP Breaker
Air: 5.5 bar / 80 PSI minimum
Coolant Tank: 118 US Gallons

Dimensions & Weight:
Machine Dimensions: 11.58' x 7.58' x 8.43' (L x W x H)
Coolant Tank Dimensions: 9.19' x 3.12' x 4.76' (L x W x H)
Floor Space: 2,160 x 3,450 x 3,150mm / 86" x 136" x 125"
Gross Weight: 7,540kg / 16,623 lbs.

Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
5 Axis
Fanuc 31iMB5 +Control
Renishaw AxiSet Check-Up
Kinematics Package
Royal Mist Collector
5th Axis Workholding Package
Jorgensen Chip Conveyor
40-Tool ATC with Heavy Tool & Big Tool Functions
Spindle Chiller
