Home / CNC Lathe / CITIZEN / K16E TYPE VII / 15096

Posted By IanF937

BUY NOW

Please enter your email to see more photos.

Seller Needs:

$35,500

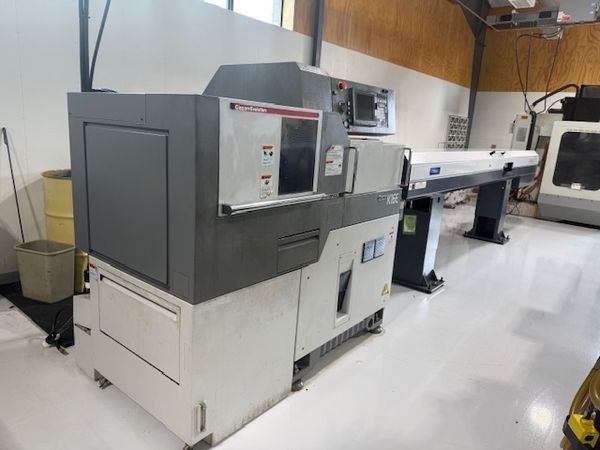

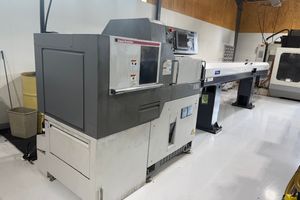

2010 CITIZEN K16E TYPE VII

ID:15096
Brand:CITIZEN
Model: K16E TYPE VII
Year:2010
Category:CNC Lathe
Location:Oregon

Located In Oregon

SHIPPING COST :

CITIZEN K16E TYPE VII AI Chat

Loading ...

Machine Overview

Specs:

Bar Capacity: 0.63"
Spindle Speed: 15,000 RPM
Spindle Motor: 4 HP
Max Turning Dia: 0.63"
Max Turning Length: 7.87"
Axes: X1, Y1, Z1, X2, Z2, C1, C2
Plus A7 - Loader Axis
Maximum machining diameter (D): 0.62"
Maximum machining length (L): 7.87" / 1 chucking
Maximum front drilling diameter: 0.39"
Maximum front tapping diameter (tap, die): M8
Spindle through-hole diameter: .78"
Main spindle speed: 15,000 rpm
Maximum drilling diameter for gang rotary tool: 0.19"
Maximum tapping diameter for gang rotary tool: M4
Spindle speed of gang rotary tool (Rating): 6,000 rpm (Rating: 4,500 rpm)
Maximum chuck diameter of back spindle: .63"
Maximum protrusion length of back
spindle workpiece: 1.57"
Maximum protrusion length: 3.15"
Maximum drilling diameter for back spindle: .24"
Maximum tapping diameter for back spindle: M5
Back spindle speed: 10,000 rpm
Maximum drilling diameter for back
tool post rotary tool: 0.19"
Maximum tapping diameter for back
tool post rotary tool: M5
Spindle speed of back
tool post rotary tool (Rating): 4,500 rpm
Maximum number of tools to be mounted: 23
Turning tools on the gang tool post: 6 to 7
Cross rotary tools: 4 to 8
Rotary tools for front drilling: 4
Tools for front drilling: 3 to 4
Dimensions: 72" x 42" x 66"
Weight: 4,850 LBS

Options:

Cincom CNC
Chip Conveyor
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
CAV16KE-IS Barfeeder

Description:

Pre-owned CITIZEN K16E Type VII 2006 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Cincom CNC control. This CNC Machine is currently located in Oregon. This CITIZEN CNC Lathe is available for a limited time. Get a quote today on this K16E Type VII before it's gone.
