Machine Overview

Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque: 90 ft-lbf
Max Cutting: 650 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs
Tool-to-Tool: 4.2 s
Chip-to-Chip: 4.5 s
Table Size: 48" x 18"
Weight: 11,720 LBS
Voltage 208/230, 3-Phase
Options:
HAAS CNC Control
Chip Conveyor
Programmable Coolant
4th Axis Rotary Table
Programmable Coolant Nozzle
4th Axis Drive and Wiring
HRT310 Rotary Table included
Visual Quick Code
Geared Head
Coordinate Rotation & Scaling
Remote Jog Handle
User Definable Macros
High Intensity Lighting
Description:

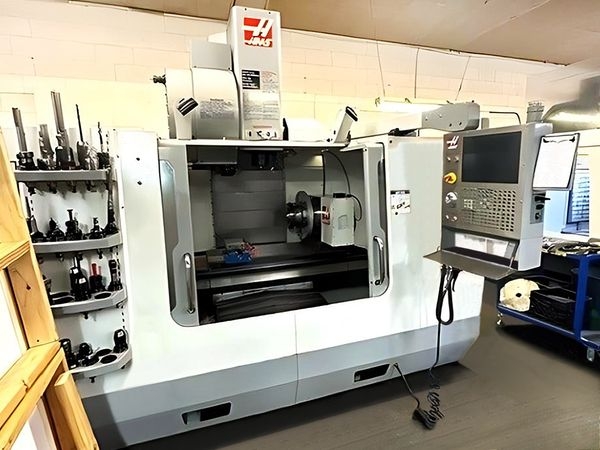

The product for sale is a 2006 HAAS VF3 Vertical Machining Center. With 5550 spindle time hours, this piece of machinery is equipped with a high-quality HAAS CNC Control System. This system enables precise computer-based control over the machine's mechanical capabilities.

This specific machine has several appealing attributes and options that are designed to increase utility and functionality. Most notably, it comes with the invaluable upgrade of a Side Mount Tool Changer. This feature enhances the machining center’s functionality by increasing flexibility and reducing downtime due to manual tool changes.

Another upgrade that adds significant value to this machining center is its pre-wiring for a 4th Axis. This feature makes it capable of accommodating rotary operations, although the Rotary Attachment itself is not included in this sale. Moreover, it comes with a Geared Head that offers improved torque for handling harder materials and heavy-duty applications.
