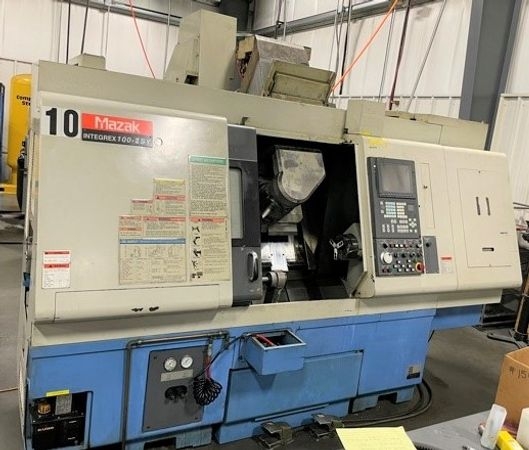

No Reserve: 2001 MAZAK INTEGREX 100SY #5272

Bar Capacity: 1.65"
Chuck Size: 6"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 16.14"
Z Axis Travel: 31.69"
Rapid Rate Z Axis: 1,181 IPM
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 21.45"
Max Turning Length: 29.65"
Max Swing: 21.45"
Y-Axis Travel: 5.51"
W-Axis Travel (Sub-Spindle): 31.3"
C-Axis Indexing: .001 Deg
Milling Spindle RPM 10,000 RPM
Tool positions: 20 ATC
Second chuck size: 6"
Spindle motor: 7.5HP
Spindle nose: A2-5
Second spindle motor: 6000
Second spindle nose: A2-5
Dimensions: 121" x 84" x 97"
Weight: 10,500 LBS

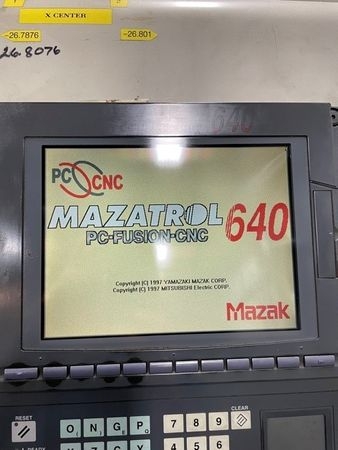

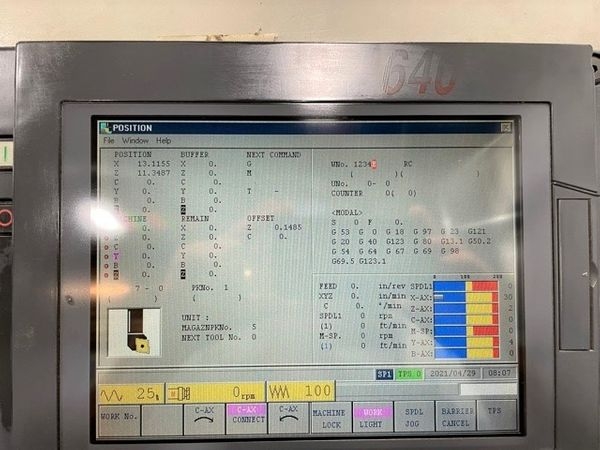

Mazatrol PC Fusion 640

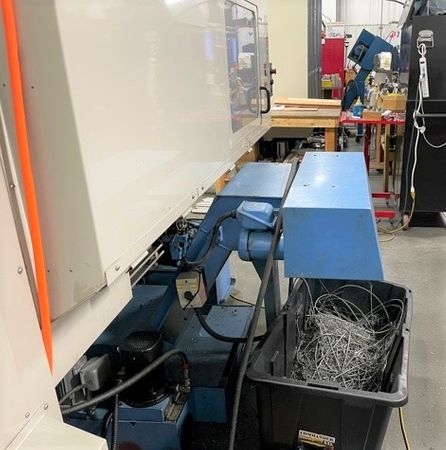

Chip Conveyor
Tool Presetter
Parts Catcher

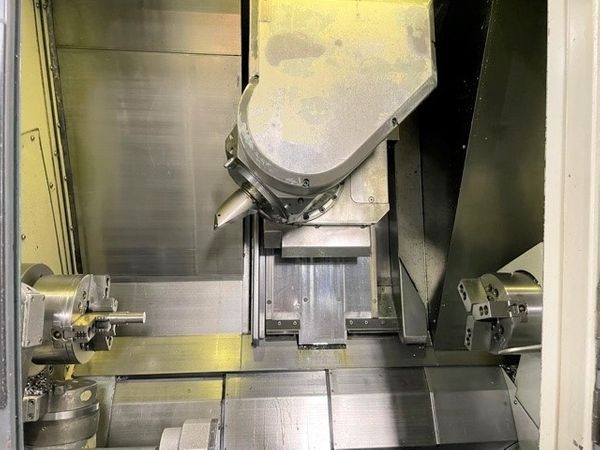

Sub Spindle
Y Axis
