Home / CNC Lathe / MAZAK / INTEGREX 100SY / 4006
Posted By ChriU546
us-flag
Located In Indiana
machine-hours
Power ON 4626 Auto Oper 1956 Auto Cut 1281 Total Cut 970 Hours
SHIPPING COST :
Hello!

Machine Overview

Specs:
Bar Capacity: 1.65"
Chuck Size: Collect Chuck Main, 6" on Sub
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 16.14"
Z Axis Travel: 31.69"
Rapid Rate Z Axis: 1,181 IPM
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 21.45"
Max Turning Length: 29.65"
Max Swing: 21.45"
Y-Axis Travel: 5.51"
W-Axis Travel (Sub-Spindle): 31.3"
C-Axis Indexing: .001 Deg
Milling Spindle RPM 10,000 RPM
Tool positions: 20 ATC
Second chuck size: 6"
Spindle motor: 7.5HP
Spindle nose: A2-5
Second spindle motor: 6000
Second spindle nose: A2-5
Dimensions: 121" x 84" x 97"
Weight: 10,500 LBS
Options:
Fusion 640MT
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Description:

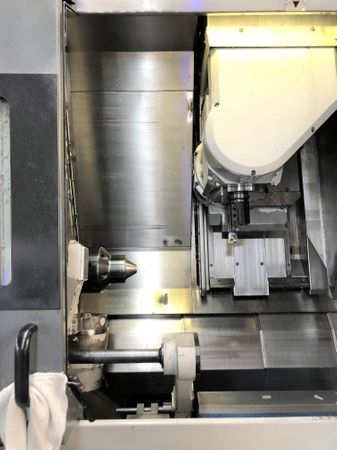

Pre-owned MAZAK INTEGREX 100SY 2005 CNC Lathe. This CNC Lathe has Power ON 4626 Auto Oper 1956 Auto Cut 1281 Total Cut 970 cutting time and is equipped with a Fusion 640MT control. This CNC Machine is currently located in Indiana. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this INTEGREX 100SY before it's gone.
