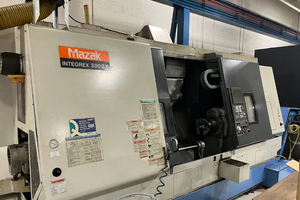

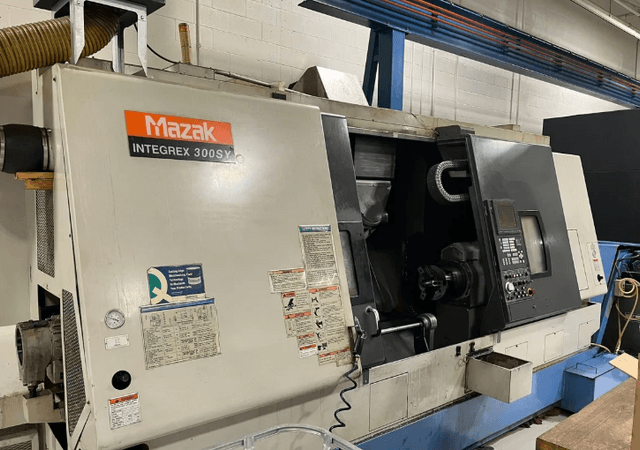

2000 MAZAK INTEGREX 300SY

Swing: 24"
Machining Length: 40"
Chuck Size: 10"
Bar Capacity: 3"
Power: 30 HP
Spindle Speed: 4,000 RPM
Maximum swing over the Slant Bed: 24"
Maximum Swing Over the Carriage: 17.7"
Distance between centers: 40.1"
X-axis Travel: 22.83"
Y-axis Travel: 9.06" (+/- 4.19")
Z-axis Travel: 43.2"
B-axis Tilt Movement: 225 Degrees at .001 Increments
C-axis Rotation: .001 Degree
Spindle Nose / spindle bore / bar capacity: A2-8 / 3.46" / 3"
Spindle Speed: 35 to 3,500 RPM
Spindle Motor: 35 HP
Sub Spindle Nose / bore / bar capacity: A2-8" / 2.99" / 2.5"
Sub Spindle Speed: 35 to 3,500 RPM
Milling Spindle Speed: 15 to 15,000 RPM
Milling Spindle Motor:20 HP
Tool Magazine Capacity: 40 Station Tool Changer
Rapid Traverse Rates (x, y, z): 1181 IPM / 590 IPM / 1181 IPM
Machine Dimensions: 229"x 96" x110"
Machine Weight: 27,600 LBS

Mazatrol Fusion 640MT
Chip Conveyor
Sub Spindle
Y Axis
B-Axis Pendulum Style Turret Head
Y-Axis Capability
Full C-Axis Spindle Rotation
Milling / Drilling Capability
10" 3 Jaw Hydraulic Chuck on Main Spindle
10" 3 Jaw Hydraulic Chuck on Sub Spindle
Automatic Tool Eye
