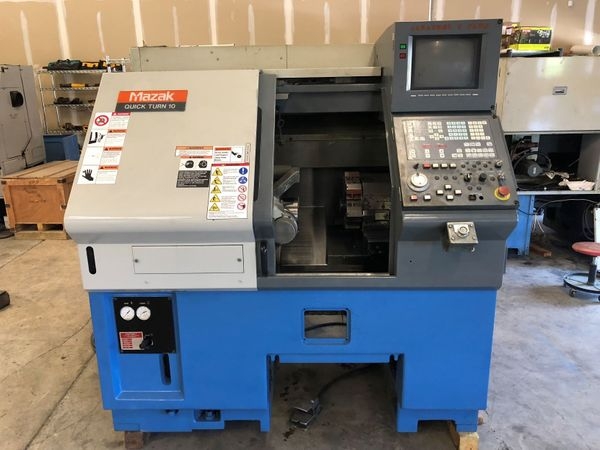

Pre-owned MAZAK QT10 1995 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Mazatron T Plus control. This CNC Machine is currently located in Florida. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this QT10 before it's gone.
Notify Me:
Specs:
Bar Capacity: 1.57"
Chuck Size: 6"
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
X Axis Travel: 11.4"
Z Axis Travel: 3.75"
Rapid Rate Z Axis: 1,300 IPM
Turret Tools: 8 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 6.3"
Max Turning Length: 10.08"
Max Swing: 11.81"
Spindle Nose / Bore: A2-5? / 1.97?
Spindle Torque 70.8 ft./lbs
Chuck Size: 6"
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
X Axis Travel: 11.4"
Z Axis Travel: 3.75"
Rapid Rate Z Axis: 1,300 IPM
Turret Tools: 8 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 6.3"
Max Turning Length: 10.08"
Max Swing: 11.81"
Spindle Nose / Bore: A2-5? / 1.97?
Spindle Torque 70.8 ft./lbs
Options:
Mazatron T Plus
Tool Presetter
Tool Presetter
