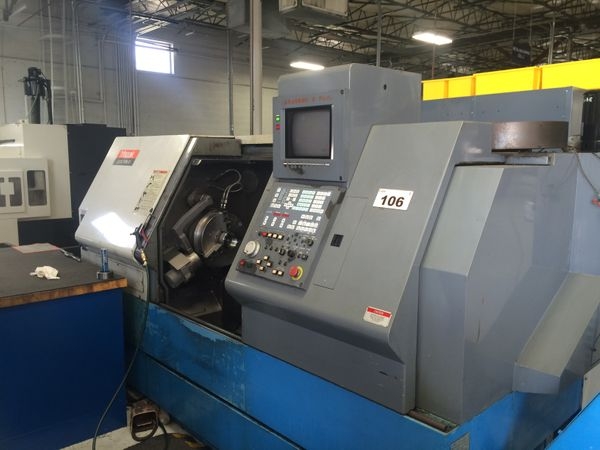

Used MAZAK QT30 CNC Lathe
Pre-owned MAZAK QT30 1997 CNC Lathe for only $32,000. This CNC Lathe has average cutting time and is equipped with a Mazatrol T-Plus control. This CNC Machine is currently located in TX. This MAZAK CNC Lathe is the only one in stock and available for a limited time. Get a quote today on this QT30 before it's gone.
Specifications:
Chuck Size:12" Hydraulic
Maximum Swing: 20"
Swing Over Cross Slide: 15.75"
Maximum Cutting Diameter: 12.5"
Maximum Cutting Length: 39.4"
X-Axis Travel: 7.875"
Z-Axis Travel: 40.1"
Spindle Motor: 30 HP
Spindle Torque: 318 ft. / lbs.
Spindle Speed: 33 - 3,300 RPM
Spindle Nose / Spindle Bore: A2-8" / 3.15"
Turret Type: Octagonal-8 sided
Number of Turret Positions: 16 Turret Positions
Rapid Traverse X / Z: 780 / 980 IPM
Tailstock Quill Dia. / Travel: 3.94" / 5.10"
Machine Dimensions: 135"x73"x73"
Machine Weight: 12,540 lbs.
Maximum Swing: 20"
Swing Over Cross Slide: 15.75"
Maximum Cutting Diameter: 12.5"
Maximum Cutting Length: 39.4"
X-Axis Travel: 7.875"
Z-Axis Travel: 40.1"
Spindle Motor: 30 HP
Spindle Torque: 318 ft. / lbs.
Spindle Speed: 33 - 3,300 RPM
Spindle Nose / Spindle Bore: A2-8" / 3.15"
Turret Type: Octagonal-8 sided
Number of Turret Positions: 16 Turret Positions
Rapid Traverse X / Z: 780 / 980 IPM
Tailstock Quill Dia. / Travel: 3.94" / 5.10"
Machine Dimensions: 135"x73"x73"
Machine Weight: 12,540 lbs.
Equipped With:
Mazatrol T-Plus
Chip Conveyor
Tailstock
Chip Conveyor
Tailstock
Seller:
Rick (Machine Shop in USA)
