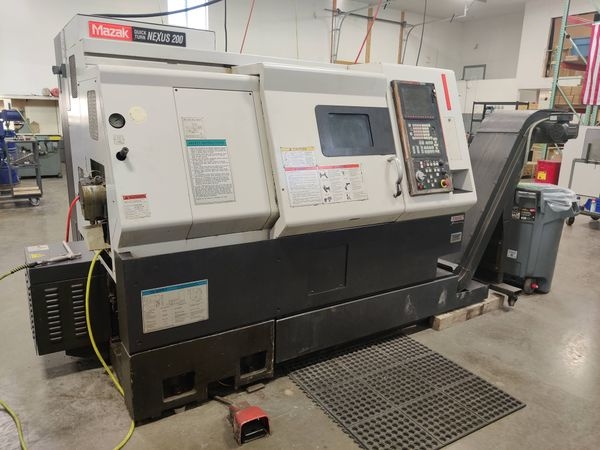

Used MAZAK QTN200 20 IN CNC Lathe
Pre-owned MAZAK QTN200 20 IN 2005 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Mazatrol 640T Nexus control. This CNC Machine is currently located in USA. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this QTN200 20 IN before it's gone.
Specs:
Bar Capacity: 2"
Chuck Size: 10"
Spindle Speed: 5,000 RPM
Spindle Motor: 35 HP
X Axis Travel: 7.5"
Z Axis Travel: 21.125"
Rapid Rate Z Axis: 1,299 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 13.78"
Max Turning Length: 20.16"
Max Swing: 20"
Weight: 10,600 LBS
Chuck Size: 10"
Spindle Speed: 5,000 RPM
Spindle Motor: 35 HP
X Axis Travel: 7.5"
Z Axis Travel: 21.125"
Rapid Rate Z Axis: 1,299 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 13.78"
Max Turning Length: 20.16"
Max Swing: 20"
Weight: 10,600 LBS
Options:
Mazatrol 640T Nexus
Chip Conveyor
Tool Presetter
Tailstock
Chip Conveyor
Tool Presetter
Tailstock
Price:
$49,500
Payment:
Owner:
John (Machine Shop in MT)
