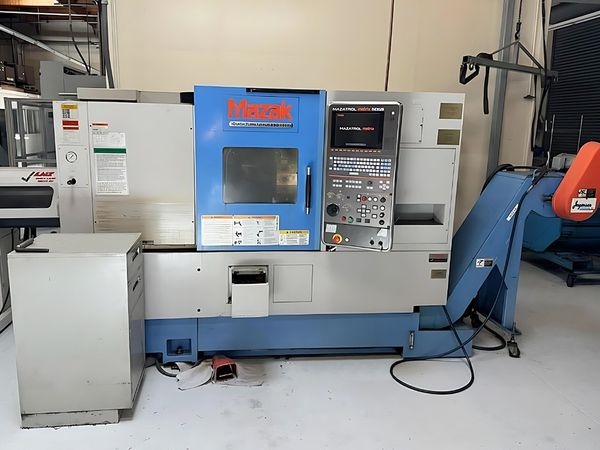

Pre-owned 2011 MAZAK Quick Turn Nexus or QTN250MY II CNC Lathe. This CNC Turning Center has below average cutting time and is equipped with a Mazatrol Matrix Nexus 2 control. It also has an LNS Quickload Servo 80 Barfee...Read More
Notify Me:
Specs:
Max Turning Diameter: 14.76"
Max Turning Length: 19.85"
Max Swing: 26.6"
X Axis Travel: 9"
Z Axis Travel: 22.76"
Spindle Speed: 4,000 / 4,500 RPM (Main / Rotary)
Spindle Motor: 35 HP
Bar Capacity: 3"
Chuck Size: 10"
Turret Tools: 12 Station VDI Turret
EQUIPPED WITH:
MAZATROL MATRIX NEXUS CONTROL
Mazatrol Matrix Nexus Control w/ 12.1" Color LCD
Windows XP Operating System
Live Tooling, Y-Axis, Full C-Axis
LNS Quickload Servo 80 Short Bar Feed
213 PSI High Powered Coolant
Automatic Tool Eye
Programmable Tailstock, Live Center w/ Dead Quill
Automatic Parts Catcher
Chip Conveyor
USB I/F (2-Port)
LAN Port
Control Options Include:
Milling Spindle Synchronous Tapping
User Macro - Common Variables: 600 pairs
Mazak Tapping / Boring / EIA Helical Tap Cycle
EIA / ISO Input Function
Sequence Number Comparison Stop Function
Absolute Positioning System (N/A with S/F
Operator Door Interlock with Lock Switch
Hydraulic Pressure Interlock
Y-Axis Control
Tooling Includes:
(1) Axial Live Holder
(1) Radial Live Holder
Kitagawa 10" Thru Hole Chuck Model B-210A0815X
Chuck Open Close Confirmation
Other Items Include:
Multi Tap Transformer
Relocation Device
Max Turning Length: 19.85"
Max Swing: 26.6"
X Axis Travel: 9"
Z Axis Travel: 22.76"
Spindle Speed: 4,000 / 4,500 RPM (Main / Rotary)
Spindle Motor: 35 HP
Bar Capacity: 3"
Chuck Size: 10"
Turret Tools: 12 Station VDI Turret
EQUIPPED WITH:
MAZATROL MATRIX NEXUS CONTROL
Mazatrol Matrix Nexus Control w/ 12.1" Color LCD
Windows XP Operating System
Live Tooling, Y-Axis, Full C-Axis
LNS Quickload Servo 80 Short Bar Feed
213 PSI High Powered Coolant
Automatic Tool Eye
Programmable Tailstock, Live Center w/ Dead Quill
Automatic Parts Catcher
Chip Conveyor
USB I/F (2-Port)
LAN Port
Control Options Include:
Milling Spindle Synchronous Tapping
User Macro - Common Variables: 600 pairs
Mazak Tapping / Boring / EIA Helical Tap Cycle
EIA / ISO Input Function
Sequence Number Comparison Stop Function
Absolute Positioning System (N/A with S/F
Operator Door Interlock with Lock Switch
Hydraulic Pressure Interlock
Y-Axis Control
Tooling Includes:
(1) Axial Live Holder
(1) Radial Live Holder
Kitagawa 10" Thru Hole Chuck Model B-210A0815X
Chuck Open Close Confirmation
Other Items Include:
Multi Tap Transformer
Relocation Device
Options:
Mazatrol Matrix Nexus 2
Chip Conveyor
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Y Axis
Chip Conveyor
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Y Axis
