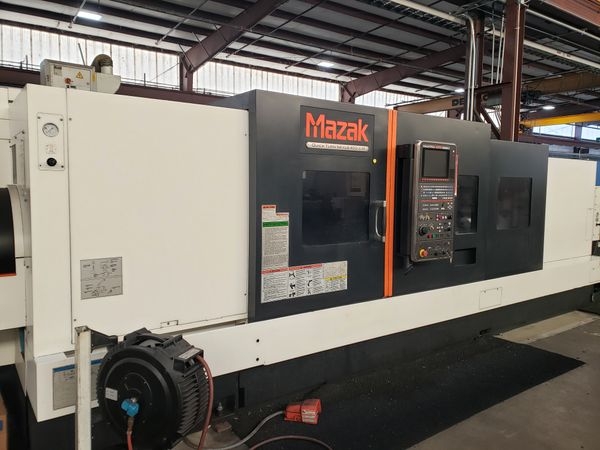

Used MAZAK QTN450M-II 120in CNC Lathe
Pre-owned MAZAK QTN450M-II 120in 2014 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Mazatrol Matrix Nexus 2 control. This CNC Machine is currently located in Texas. This MAZAK CNC Lathe is available for a limited time.Get a quote today on this QTN450M-II 120in before it's gone.
Specs:
Bar Capacity: 7.23"
Chuck Size: 21"
Spindle Speed: 2,000 RPM
Spindle Motor: 50 HP
X Axis Travel: 12.2"
Z Axis Travel: 124.8"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 22.83"
Max Turning Length: 122.6"
Max Swing: 33.26"
Weight: 34,000 LBS
Chuck Size: 21"
Spindle Speed: 2,000 RPM
Spindle Motor: 50 HP
X Axis Travel: 12.2"
Z Axis Travel: 124.8"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 22.83"
Max Turning Length: 122.6"
Max Swing: 33.26"
Weight: 34,000 LBS
Options:
Mazatrol Matrix Nexus 2
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
SMW Autoblock Air Chuck
SMW Hydraulic Steady Rest
Re Threading
Thread Compensation
High Power Coolant 118 PSI
Additional Coolant Nozzle
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
SMW Autoblock Air Chuck
SMW Hydraulic Steady Rest
Re Threading
Thread Compensation
High Power Coolant 118 PSI
Additional Coolant Nozzle
Owner:
Cyril (Machine Shop in USA)
