Seller Needs:
$121,000|
2763
|
7

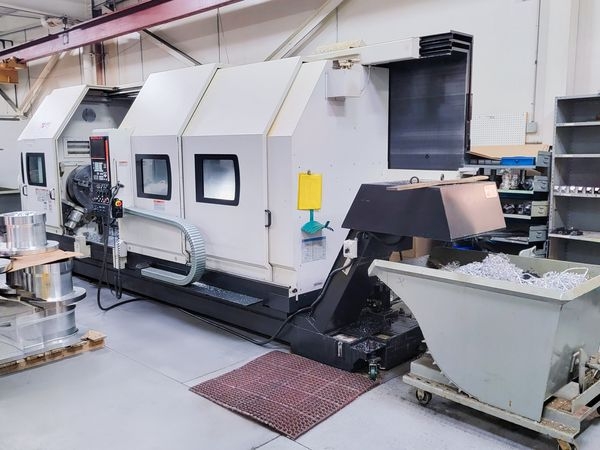

Pre-owned MAZAK QUICK SLANT 30N 2008 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Mazatrol Fusion 640T control. This CNC Machine is currently located in USA. This MAZAK CNC Lathe is available for ...Read More
Seller Needs:
Payment:
Specs:
Catalogue Specifications
Maximum Swing: 31.7?
Maximum Cutting Diameter: 22.05?
Maximum Cutting Length: 118?
Spindle Speeds (Infinitely Variable): 2 – 1500 RPM
Spindle Nose: A2-15
Spindle Bore: 7.1?
Spindle Motor: 50 HP
X-Axis Travel: 22.64?
Z-Axis Travel: 118?
X-Axis Rapid Traverse: 472 IPM
Z-Axis Rapid Traverse: 551 IPM
Number of Tool Positions: 15 (10 O.D., 5 I.D.)
EQUIPPED WITH:
Programmable Tailstock
Mazatrol 640 T CNC Control
15-Position Turret
16? SMW 3-Jaw Chuck
Coolant System (High Pressure)
Chip Conveyor
Total Weight:
30,860 lbs.
Maximum Swing: 31.7?
Maximum Cutting Diameter: 22.05?
Maximum Cutting Length: 118?
Spindle Speeds (Infinitely Variable): 2 – 1500 RPM
Spindle Nose: A2-15
Spindle Bore: 7.1?
Spindle Motor: 50 HP
X-Axis Travel: 22.64?
Z-Axis Travel: 118?
X-Axis Rapid Traverse: 472 IPM
Z-Axis Rapid Traverse: 551 IPM
Number of Tool Positions: 15 (10 O.D., 5 I.D.)
EQUIPPED WITH:
Programmable Tailstock
Mazatrol 640 T CNC Control
15-Position Turret
16? SMW 3-Jaw Chuck
Coolant System (High Pressure)
Chip Conveyor
Total Weight:
30,860 lbs.
Options:
Mazatrol Fusion 640T
Chip Conveyor
Tool Presetter
Tailstock
24 inch Hydraulic Chuck
Chip Conveyor
Tool Presetter
Tailstock
24 inch Hydraulic Chuck
