No Reserve: MAZAK SQT100MSY CNC Lathe

Bidding has ended for this lot

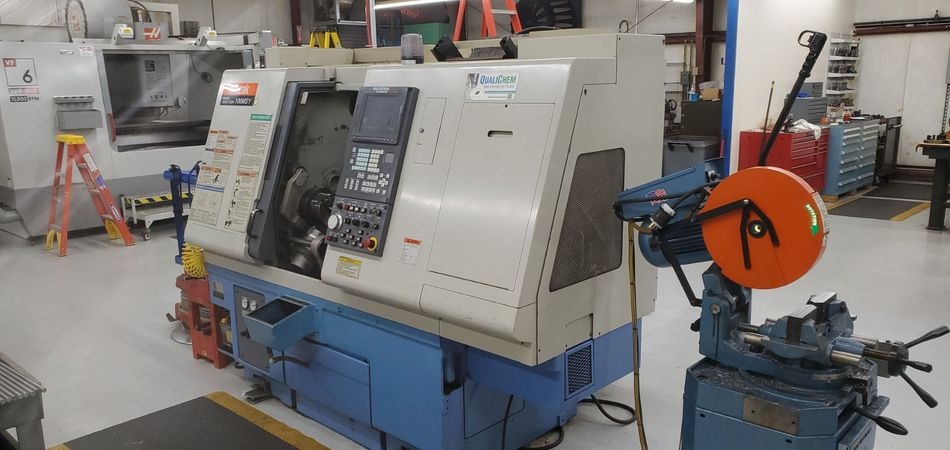

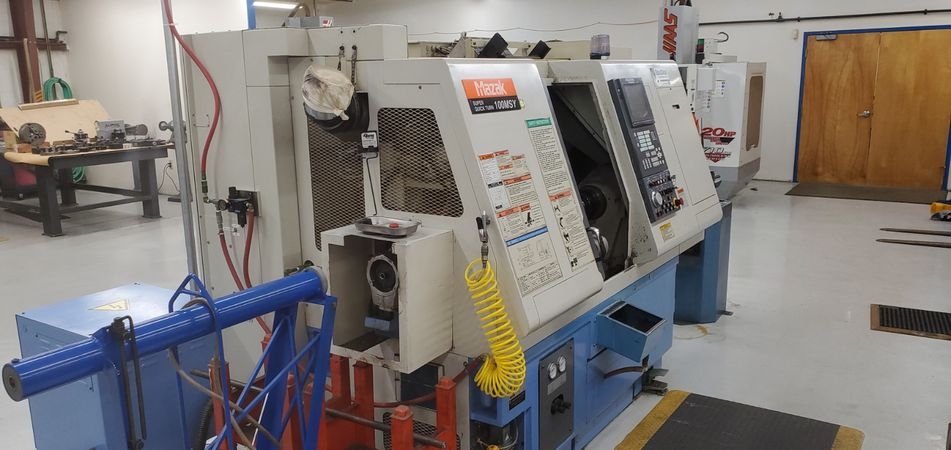

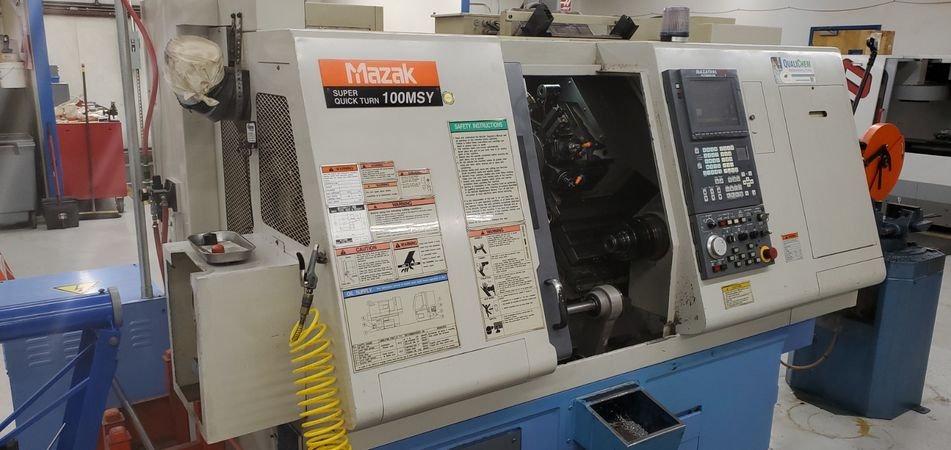

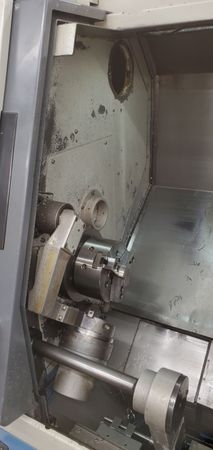

Pre-owned MAZAK SQT100MSY 2005 CNC Lathe. This CNC Lathe has power on 3687 cut time 2640 cutting time and is equipped with a Mazatrol Fusion 640T control. This CNC Machine is currently located in Georgia. This MAZAK CNC Lathe is available for a limited time.

Brand:

MAZAK

Model:

SQT100MSY

Year:

2005

Category:

CNC Lathe

ID:

5374

Specs:

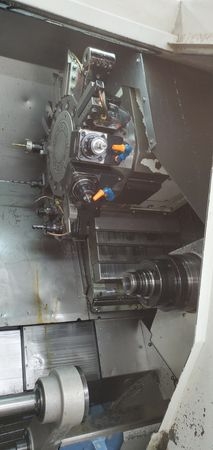

Turret Tools: 12 (all live)
Bar Capacity: 2.4"
Main Spindle Speed: 6000
Spindle Motor: 10 HP
Sub Spindle Speed: 6000
Spindle Motor: 10 HP
Milling Spindle Speed: 4500
Milling Spindle Motor: 5 HP
X Axis Travel: 7.25"
Y Axis Travel: 3.125"
Z Axis Travel: 14.125"
B Axis Travel: 18.052"
Rapid Rate X Axis: 1181 in/min.
Rapid Rate Y Axis: 826 in/min.
Rapid Rate Z Axis: 1299 in/min.
Rapid Rate B Axis: 1181 in/min.
Rapid Rate C Axis: 400 rpm.
Main Chuck Size: B206
Sub Chuck Size: B205
Max Turning Dia: 11"
Max Turning Length: 21"
Max Swing: 21.65"
Dimensions: 103" x 62.6" x 72.83"
Weight: 10,340lb.

Options:

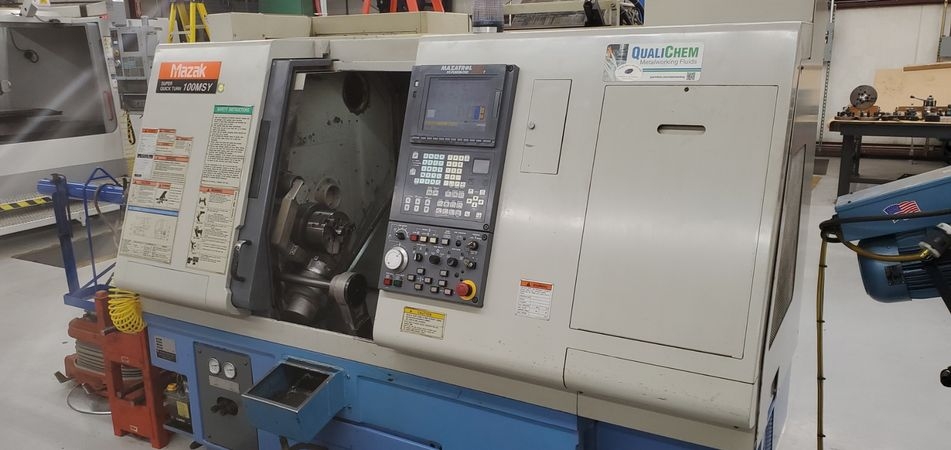

Mazatrol Fusion 640T
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
