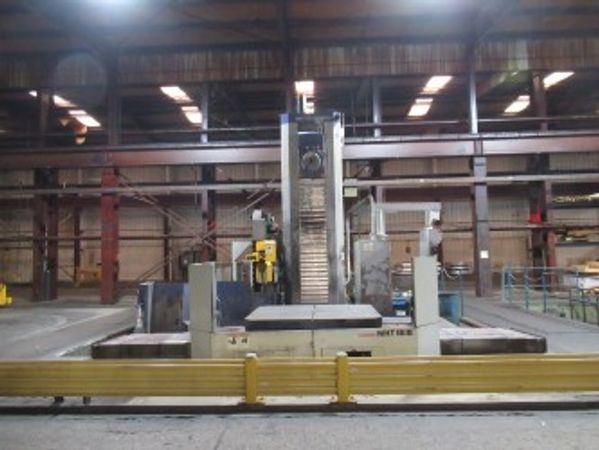

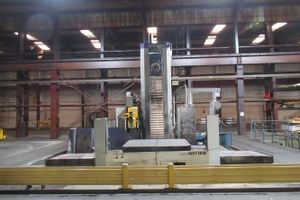

2008 MITSUBISHI MHT13/1618

ID:14983
Brand:MITSUBISHI
Model: MHT13/1618
Year:2008
Category:Boring Mill
Location:Michigan

Located In Michigan

SHIPPING COST :

MITSUBISHI MHT13/1618 AI Chat

Loading ...

Machine Overview

Specs:

Spindle

Spindle diameter: 130 mm (5.1 in)

Spindle taper: ISO 50

Max spindle speed: 4000 RPM

Spindle motor: 37 kW (50 HP)

Axis Travels

X-axis (table travel): 3000 mm (118 in)

Y-axis (vertical head): 2500 mm (98.4 in)

Z-axis: 1300 mm (51 in)

W-axis (spindle extension): 500 mm (19.7 in)

Table

Table size: 1600 × 1800 mm (63 × 71 in)

Max table load: 8000 kg (17,600 lb)

Table indexing: 0.001°

Feed / Rapid

Rapid traverse (X/Y/Z): 12,000 mm/min

Rapid traverse (W): 8,000 mm/min

Max feed rate: 8,000 mm/min

Tool Changer

Tool capacity: up to 80 tools

Max tool diameter: 150 mm (240 mm without adjacent tools)

Max tool length: 500 mm

Max tool weight: 30 kg (66 lb)

General

CNC control: FANUC 18iM (typical)

Machine weight: about 32,700 kg (72,000 lb)

Options:

Coolant Thru Spindle
Programmable Coolant

Description:

Pre-owned MITSUBISHI MHT13/1618 2010 Boring Mill. This Boring Mill has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Michigan. This MITSUBISHI Boring Mill is available for a limited time. Get a quote today on this MHT13/1618 before it's gone.
