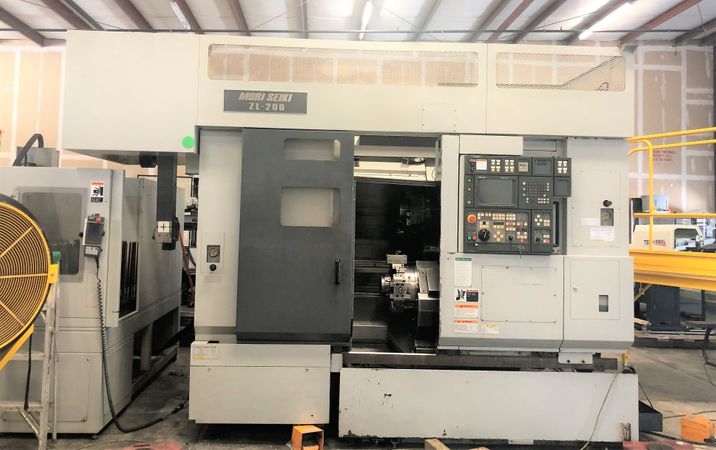

Used MORI SEIKI ZL200SMC CNC Lathe
Specifications:
Bar Capacity: 2"
Chuck Size: 8" (Main/Sub)
Spindle Speed: 4,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 9"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: (2) 12 Upper / 8 Lower Station
Rapid Rate X Axis: 709 IPM
Max Turning Dia: 21"
Max Turning Length: 21"
Max Swing: 27"
Dimensions: 154” x 85” x 83”
Weight: 11,770 lbs LBS
Chuck Size: 8" (Main/Sub)
Spindle Speed: 4,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 9"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: (2) 12 Upper / 8 Lower Station
Rapid Rate X Axis: 709 IPM
Max Turning Dia: 21"
Max Turning Length: 21"
Max Swing: 27"
Dimensions: 154” x 85” x 83”
Weight: 11,770 lbs LBS
Equipped With:
MSC-501 (Fanuc)
Live Tooling
Sub Spindle
Gantry Loader
Live Tooling
Sub Spindle
Gantry Loader
