Seller Needs:
$16,500|
259
|
1

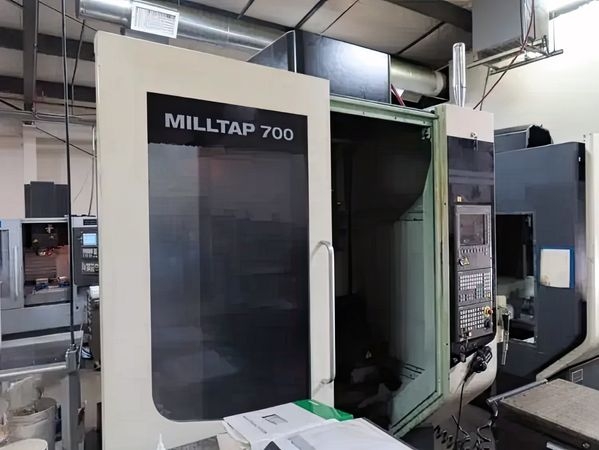

Pre-owned DMG MORI SEIKI MILLTAP 700 2013 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Oregon. This DMG MORI S...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 27.6"
Y Axis Travel: 16.5"
Z Axis Travel: 15"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Max Table Load: 882 LBS
Spindle Motor: 15 HP
Spindle Speed: 24,000 RPM
Spindle Taper: 30
Tool Changer: 25 ATC
Rapid Traverse: 2,362 IPM
Table Size: 33.1" x 16.5"
Table Load (approx.): 882 lbs. Max.
Dimensions: 92" x 65" x 98"
Weight: 7,480 LBS
Electrics: 230 Volt, 3 Phase, 60 Hz, 35 Amp
Main Motor: 14 KVA (20 HP)
Advertised specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
There are two (2) sister machines
We are quoting the 4th-Axis trunnion separately from the units. Ninety-eight (98) toolholders are available for both machines, as shown in the pictures. The two machines have twelve (12) and thirteen (13) holders in the carousels, respectively; fifty-seven (57) holders are in the cart. An undetermined number of collets also come with the machines.
Equipment is under power; available for inspection.
Buyer responsible for rigging and loading onto transportation.
Buyer responsible for freight logistics and expenses.
Y Axis Travel: 16.5"
Z Axis Travel: 15"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Max Table Load: 882 LBS
Spindle Motor: 15 HP
Spindle Speed: 24,000 RPM
Spindle Taper: 30
Tool Changer: 25 ATC
Rapid Traverse: 2,362 IPM
Table Size: 33.1" x 16.5"
Table Load (approx.): 882 lbs. Max.
Dimensions: 92" x 65" x 98"
Weight: 7,480 LBS
Electrics: 230 Volt, 3 Phase, 60 Hz, 35 Amp
Main Motor: 14 KVA (20 HP)
Advertised specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
There are two (2) sister machines
We are quoting the 4th-Axis trunnion separately from the units. Ninety-eight (98) toolholders are available for both machines, as shown in the pictures. The two machines have twelve (12) and thirteen (13) holders in the carousels, respectively; fifty-seven (57) holders are in the cart. An undetermined number of collets also come with the machines.
Equipment is under power; available for inspection.
Buyer responsible for rigging and loading onto transportation.
Buyer responsible for freight logistics and expenses.
Options:
Siemens
Chip Conveyor
4th-Axis Wired
Lubricant System
Coolant Tank & Pump
DDRT-200X
Tooling/ (98) Toolholders/ Collets
Chip Conveyor
4th-Axis Wired
Lubricant System
Coolant Tank & Pump
DDRT-200X
Tooling/ (98) Toolholders/ Collets
Seller:
JerrS494
Location:
OR
