2007 DOOSAN PUMA TT1800SY

ID:5353
Brand:DOOSAN
Model: PUMA TT1800SY
Year:2007
Category:CNC Lathe
Location:Florida

Located In Florida

SHIPPING COST :

Hello!

Machine Overview

Specs:

Bar Capacity: 2.625"
Chuck Size: (2) Royal Collet Chucks
Spindle Speed: 5,000 RPM Main & Sub
Spindle Motor: 30 HP Main & Sub
X1 Axis Travel: 6.5"
X2 Axis Travels: 7.5"
Z1 Axis Travel: 31.5"
Z2 Axis Travels: 28.3"
Y Axis Travel: 3.9"
A Axis Travel: 30.3"
Rapid Rate Z Axis: 944 IPM
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 9.1"
Max Turning Length: 9.1"
Max Swing: 9.1"

(2) TURRETS:
Turret Configuration (Upper + Lower): 24 + 24 (48 Total Stations)
O.D Tool Size: 0.8" x 0.8"
Maximum I.D. Tool Size: 1.3"
Turret Indexing Time: 0.15 Seconds
Maximum Rotary Tool Speed: 5,000 RPM

SUB & MAIN SPINDLE:
Spindle Speed: 5000 RPM
Spindle Motor (30 min / Cont): 29.5 HP / 20.1 HP
Maximum Spindle Torque: 153.5 Ft-Lbs
Spindle Nose: A2 #6
Spindle Bearing Diameter: 4.3"
Spindle Inner Diameter: 3.0"
C-Axis Indexing: 360° in .001° increments
Dimensions: 154" x 82" x 82"
Weight: 17,196 LBS

Options:

Fanuc
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Bar Feeder Interface (No Bar Feeder)

Description:

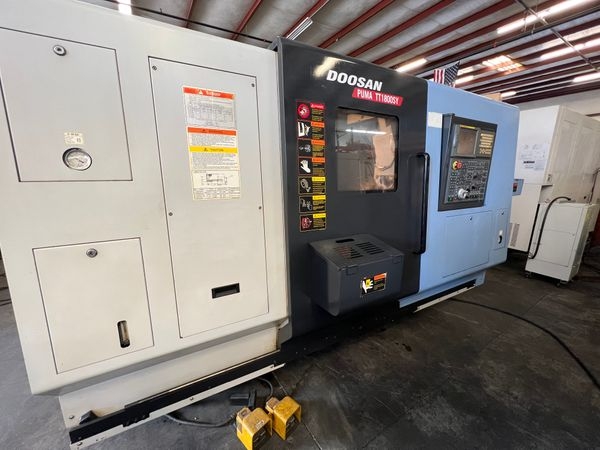

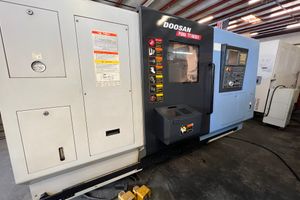

Pre-owned DOOSAN PUMA TT1800SY 2007 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc control. This CNC Machine is currently located in Florida. This DOOSAN CNC Lathe is available for a limited time. Get a quote today on this PUMA TT1800SY before it's gone.

Being offered with main and sub-spindle collet chucks as shown in photos. This machine was serviced by our in-house service technicians and available for showings.

Vid1: https://youtu.be/ulyZJ2Xk99k

Vid2:https://youtu.be/M4CyG1j1f0g

Vid3:https://youtu.be/S5cdaWXyxE4

Vid4:https://youtu.be/fljKBhDO2Gw

Vid5:https://youtu.be/CuKpEyJmgIU
