2021 DOOSAN PUMA TT1800SY

ID:13236
Brand:DOOSAN
Model: PUMA TT1800SY
Year:2021
Category:CNC Lathe
Location:USA

Located In USA

Hello!

Machine Overview

Specs:

Max Swing: 9.1"
Max Turning Diameter: 9.1"
Max Turning Length: 9.1"
X1 / X2 Axis Travels: 6.5" / 7.5"
Z1 / Z2 Axis Travel: 31.5" / 28.3"
Y Axis Travel: 3.9"
A Axis Travel: 30.3"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
Bar Capacity: 2.625"
Chuck Size Rating: 8"
Rapid Rate Z Axis: 944 IPM
Rapid Rate X Axis: 787 IPM
TURRET:
Turret Configuration (Upper + Lower): 24 ea. (48 Total Stations)
O.D Tool Size: 0.8" x 0.8"
Maximum I.D. Tool Size: 1.3"
Turret Indexing Time: 0.15 Seconds
Maximum Rotary Tool Speed: 5,000 RPM

SUB & MAIN SPINDLE:
Spindle Speed: 5000 RPM
Spindle Motor (30 min / Cont): 29.5 HP / 20.1 HP
Maximum Spindle Torque: 153.5 Ft-Lbs
Spindle Nose: A2 #6
Spindle Bearing Diameter: 4.3"
Spindle Inner Diameter: 3.0"
C-Axis Indexing: 360° in .001° increments

EQUIPPED WITH:
Fanuc I-Series CNC Control
LNS Servo S3 Barfeeder
Dual Turrets
Live Tooling
Sub-Spindle
"Y" Axis
Full C-Axis
Chip Conveyor

Tooling Included:
4 "X" Axis Live Toolholders
2 "Z" Axis Live Toolholders
8" 3 Jaw Chuck

Dimensions: 154" x 82" x 82"

Options:

Fanuc i Series
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis

Description:

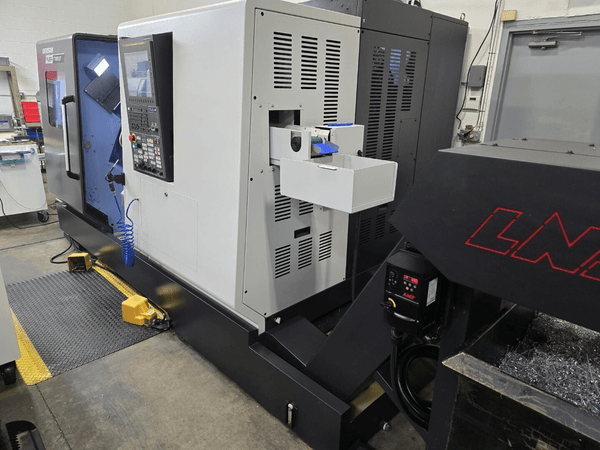

Pre-owned DOOSAN PUMA TT1800SY 2021 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc i Series control. This CNC Machine is currently located in USA. This DOOSAN CNC Lathe is available for a limited time. Get a quote today on this PUMA TT1800SY before it's gone.
